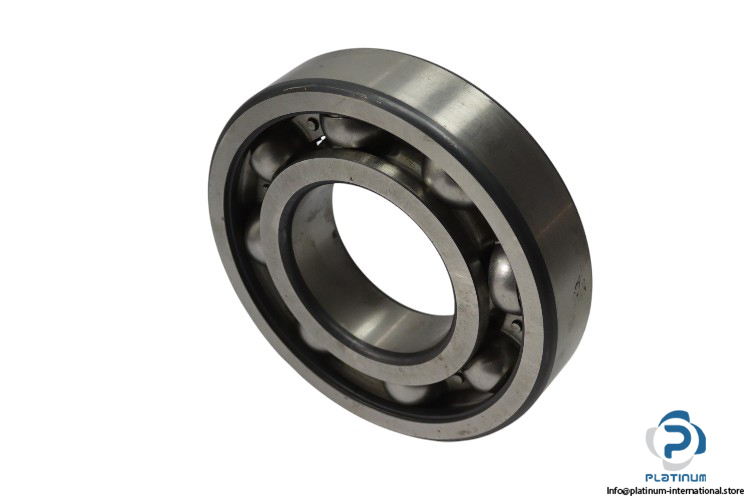

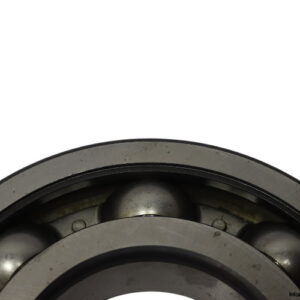

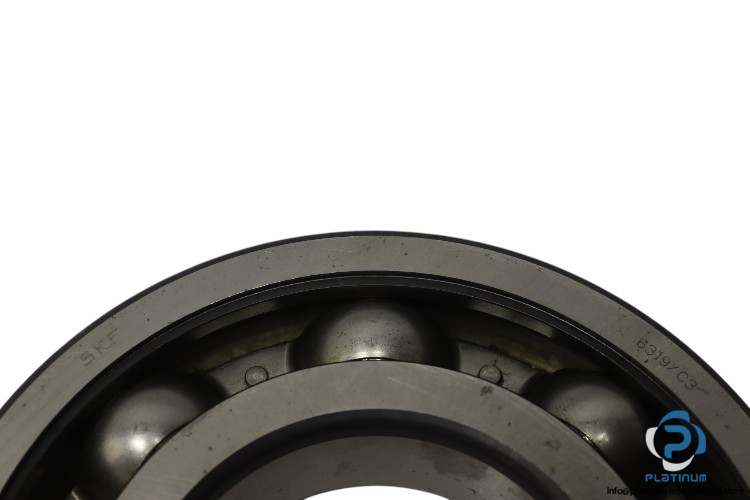

SKF 6319/C3 Deep Groove Ball Bearing
The SKF 6319/C3 Deep Groove Ball Bearing is designed for high load capacity, extended operating life, and optimized speed performance. Built with a steel sheet metal cage and a C3 radial internal clearance, this bearing offers reduced friction and excellent heat tolerance, making it suitable for high-speed and heavy-duty industrial applications.
Manufacturer: SKF
Type: Deep Groove Ball Bearing
Model: 6319/C3
Technical Information:
- Bore Diameter (d): 95 mm
- Outer Diameter (D): 200 mm
- Width (B): 45 mm
- Dynamic Load Rating (Cr): 159 kN
- Static Load Rating (C0r): 118 kN
- Limiting Speed: 4500 rpm
- Reference Speed: 7000 rpm
- Cage: Steel Sheet Metal
- Radial Internal Clearance: C3
