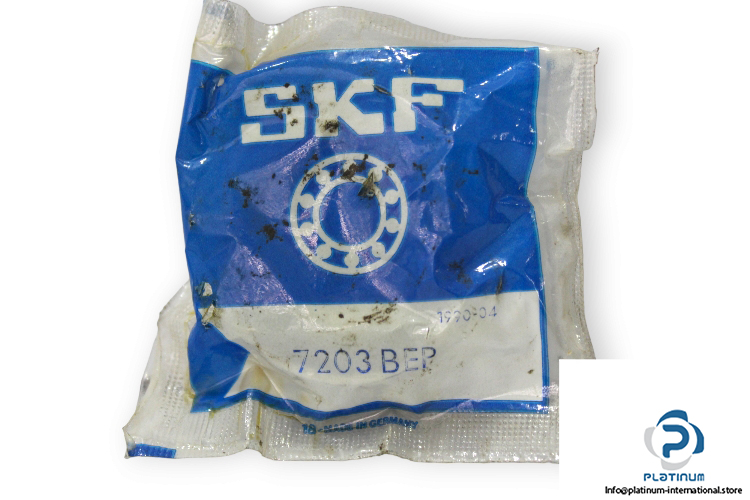

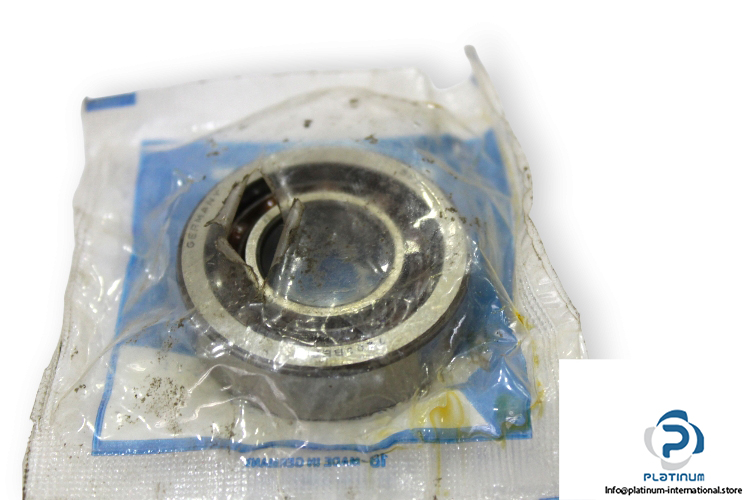

SKF 7203 BEP ANGULAR CONTACT BALL BEARING

The SKF 7203 BEP is a precision-engineered angular contact ball bearing built for applications requiring high-speed capability, axial load support, and reliability. Designed with a 40° contact angle and non-metallic cage, it ensures efficient performance under dynamic conditions.

Manufacturer: SKF
Type: Angular Contact Ball Bearing
Model: 7203 BEP

Technical Information

• Bore Diameter (d): 17 mm
• Outer Diameter (D): 40 mm
• Width (B): 12 mm
• Contact Angle (α): 40°
• Dynamic Load Rating (Cr): 10400 N
• Static Load Rating (C0r): 5500 N
• Fatigue Load Limit: 0.236 kN
• Limiting Speed: 22000 rpm
• Reference Speed: 20000 rpm
• Cage: Non-metallic
