Manufacturer: SKF
Type: Super-precision single row angular contact ball bearing
Model: 7205 CDGA/P4A

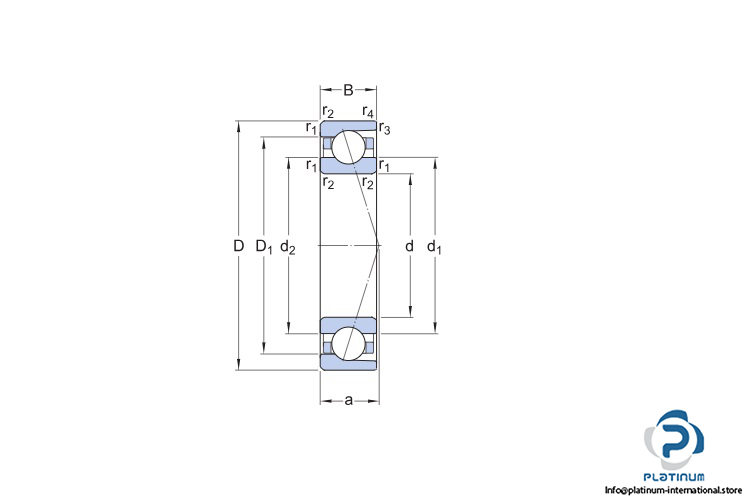

Dimensions
Bore Diameter d: 25 mm
Outer diameter D: 52 mm
Width B: 15 mm
Contact angle α: 15 °
Basic load ratings:
Dynamic C: 13.5 kN
Static C0: 7.2 kN
Fatigue load limit Pu: 0.305 kN
Design: High-capacity D
Tolerance class: P4A
Universal matching bearing: back-to-back or face to face
Ring type: One-piece inner and outer rings
