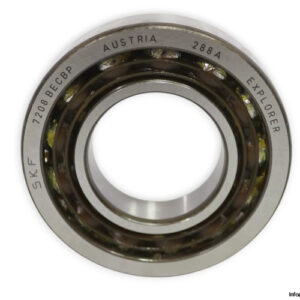

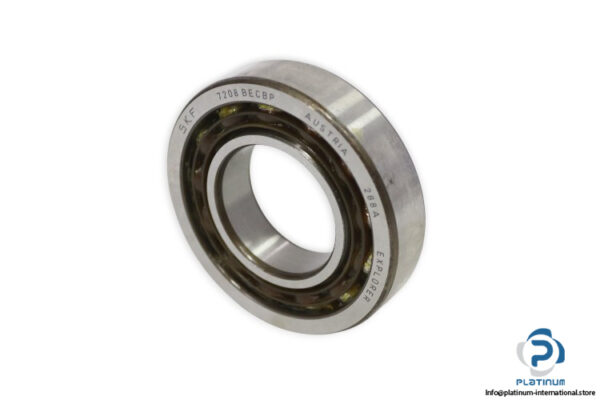

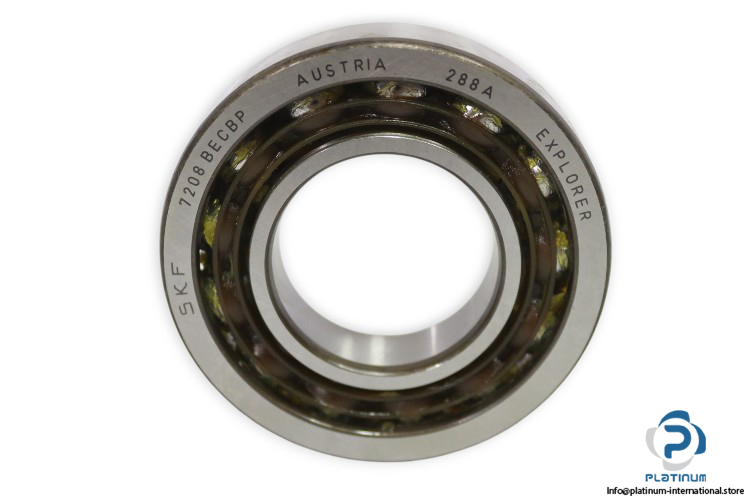

SKF 7208BECBP Single Row Angular Contact Ball Bearing

The SKF 7208BECBP is a high-precision single row angular contact ball bearing designed for demanding industrial and mechanical applications. It provides excellent rigidity, load-carrying capacity, and high-speed performance. Built with a non-metallic cage and high-grade steel construction, this bearing ensures smooth operation and long service life.

Manufacturer: SKF
Type: Single Row Angular Contact Ball Bearing
Model: 7208BECBP
Code: 288A

Technical Information

• Bore Diameter (d): 40 mm
• Outer Diameter (D): 80 mm
• Width (B): 18 mm
• Contact Angle (α): 40°
• Dynamic Load Rating (Cr): 36,500 N
• Static Load Rating (C0r): 26,000 N
• Limiting Speed: 11,000 rpm
• Reference Speed: 10,000 rpm
• Matched Condition (Axial Clearance/Preload): CB, Axial Clearance
• Cage: Non-metallic
• Bearing Material: Steel
