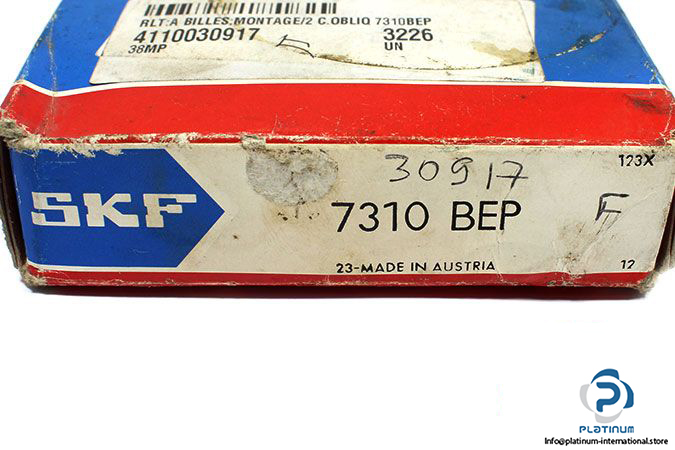

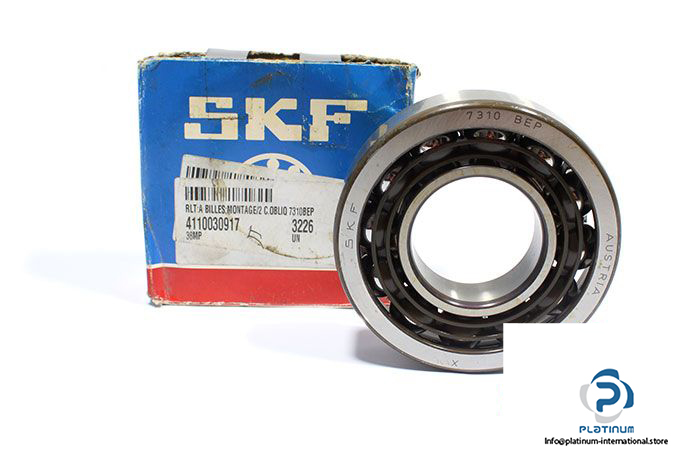

Manufacturer: SKF

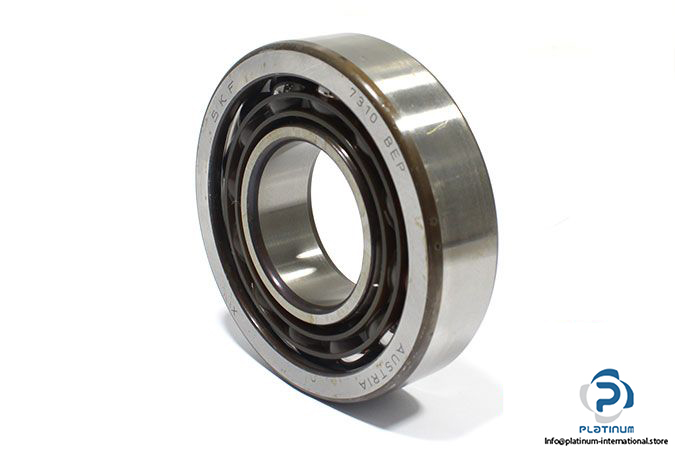

Type: Single row Angular Contact Ball Bearing

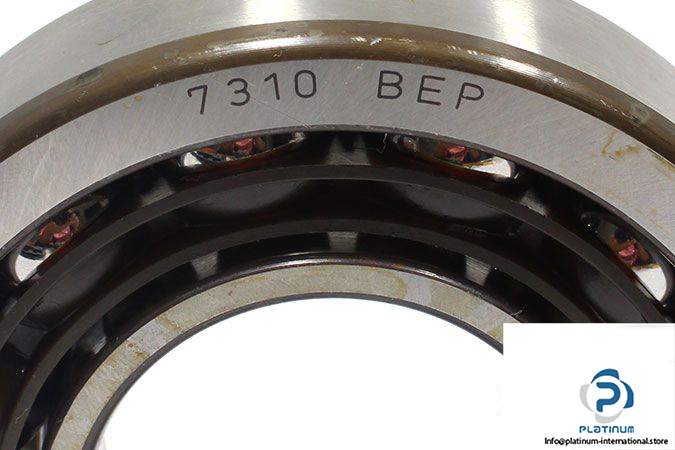

Model: 7310BEP

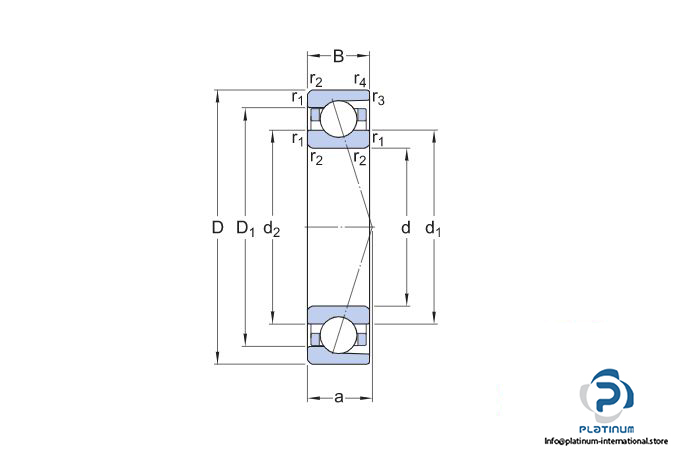

Dimensions

Bore Diameter d: 50 mm

Outer diameter D: 110 mm

Width B: 27 mm

Contact angle α: 40 °

Basic load ratings:

Dynamic C: 68.9 kN

Static C₀: 47.5 kN

Fatigue load limit P_u: 2 kN

Reference speed: 7500 rpm

Limiting speed: 7500 rpm

Cage: Glass fiber reinforced PA66 cage, ball centered

Weight: 1.1 kg
