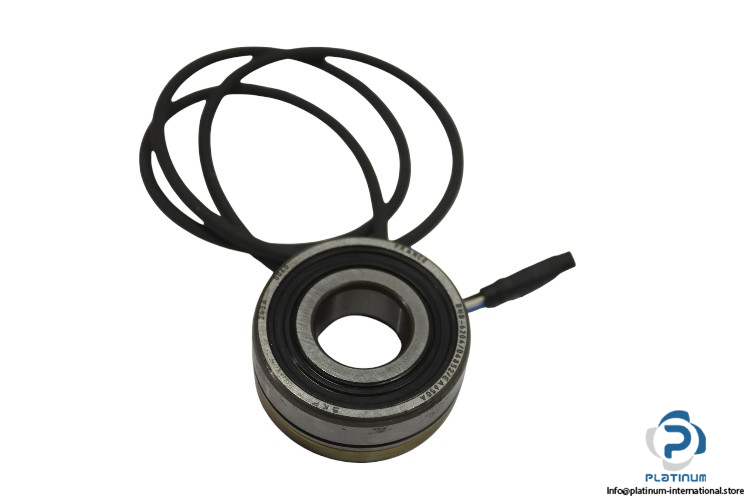

SKF BMB-6204/048S2/EA650A Motor Encoder

The SKF Motor Encoder BMB-6204/048S2/EA650A is designed for precise motion control, providing accurate feedback in industrial systems. With 48 pulses per revolution and two signal outputs, it ensures reliable performance in demanding applications.

Manufacturer: SKF

Type: Motor Encoder

Model: BMB-6204/048S2/EA650A

Technical Information:

• Jungheinrich Part No.: 50432894
• Number of Pulses per Revolution: 48 Impulse/rotation

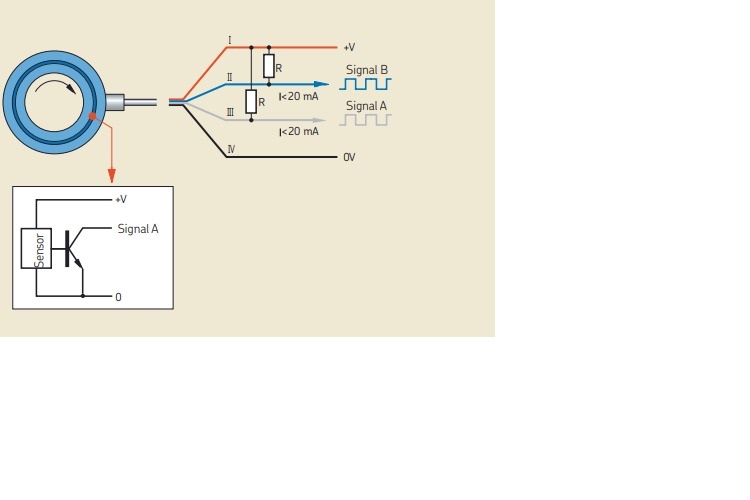

• Number of Signals: 2S, two signals
• Cage: A, Bearing with a stamped steel cage, ball centred
• Free Cable End: 650 A

SKF 6204 Deep Groove Ball Bearing

• Bore Diameter: 20 mm
• Outside Diameter: 47 mm
• Bearing Width: 14 mm
