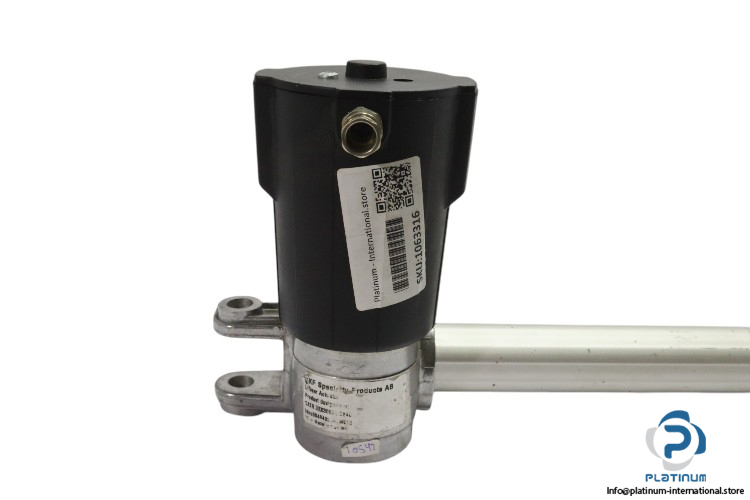

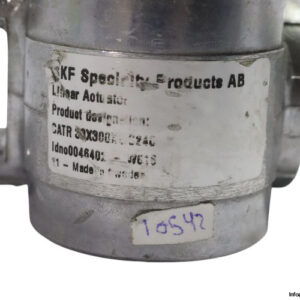

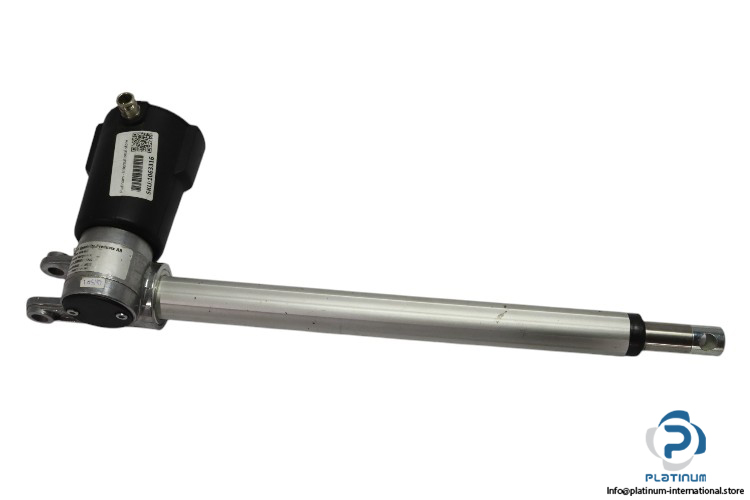

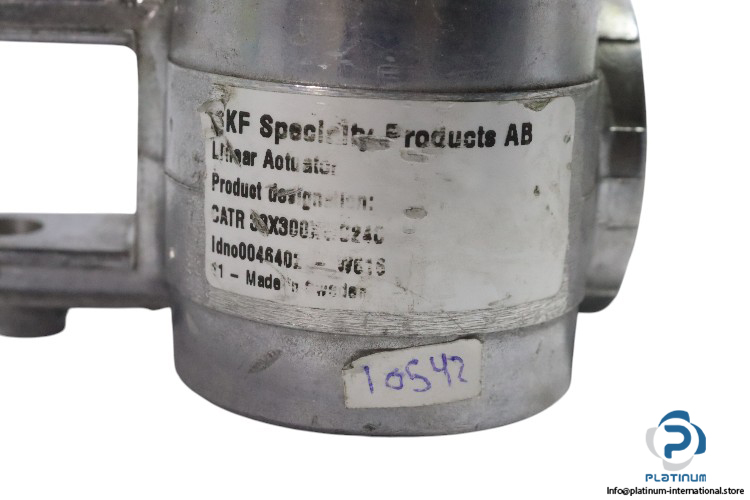

SKF CATR33X300X2/C24C Linear Actuator

The SKF CATR33X300X2/C24C is a robust linear actuator from the CATR33 series, engineered for precise linear motion in demanding industrial applications. With a 24V DC input and a 300 mm stroke length, it delivers strong push and pull forces ranging from 800 to 3000 N, making it suitable for high-load operations.

Manufacturer: SKF

Type: Linear Actuator

Series: CATR33

Model: CATR33X300X2/C24C

Technical Data:

• Length: 300 mm
• Input Voltage: 24V DC
• Ambient Temperature: -20 / 50 °C
• Rated Push Load: 800 to 3,000 N
• Rated Pull Load: 800 to 3,000 N
• Duty Factor at Max Dynamic Load and 20 °C: 15%
