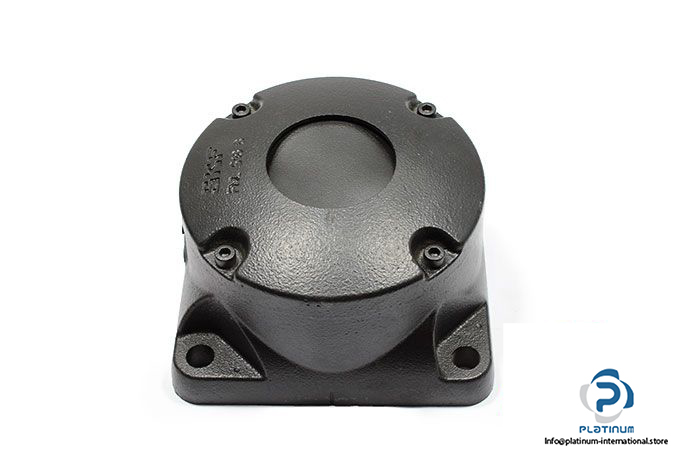

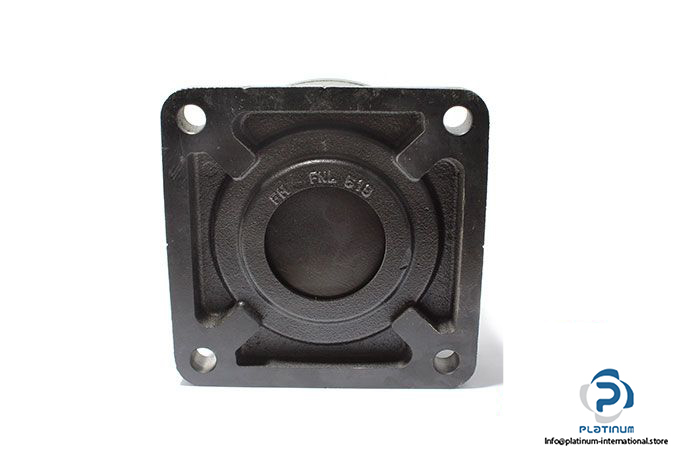

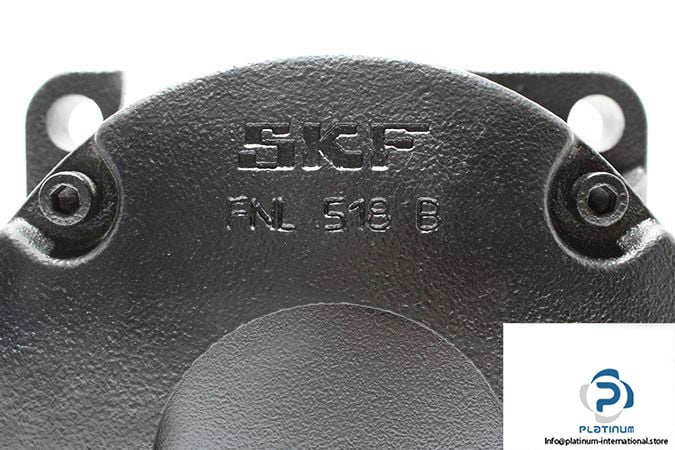

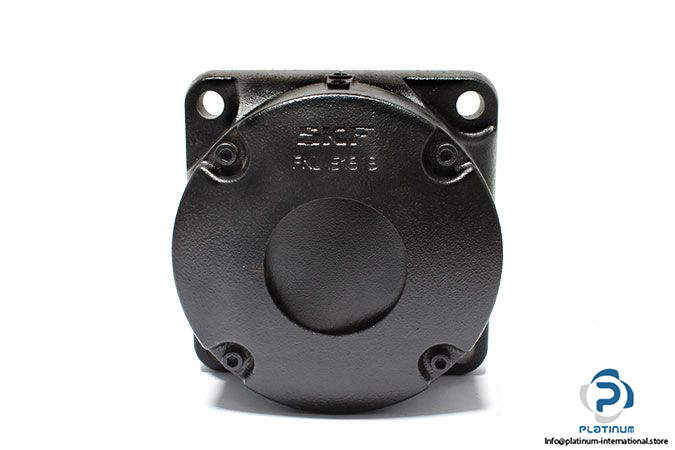

Manufacturer: SKF
Type: Flanged housings – FNL series
Model: FNL518B
Mounting: Four-Bolt Flange
Breaking Loads
P1: 170 kN
P2: 170 kN
P3: 490 kN

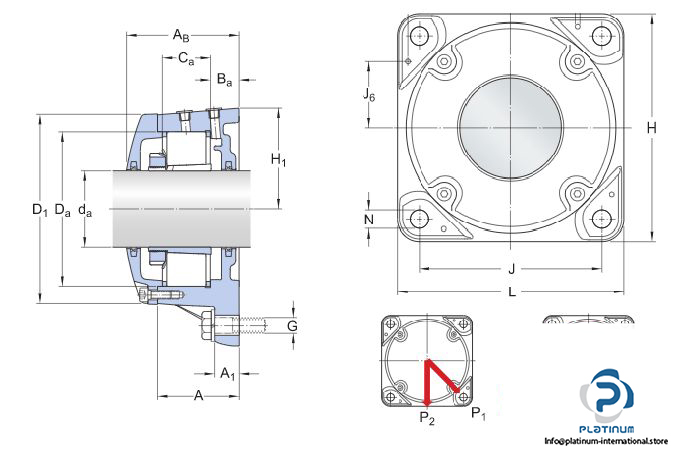

Dimensions
Bore Diameter ( da ): 80 mm
Overall length ( L ): 210 mm
Overall Width ( AB ): 118 mm
Overall Height (H) : 210 mm
Distance Between Attachment Bolts (J): 170 mm
Appropriate Attachment Bolt, Size: 16 mm
Weight: 12 kg
