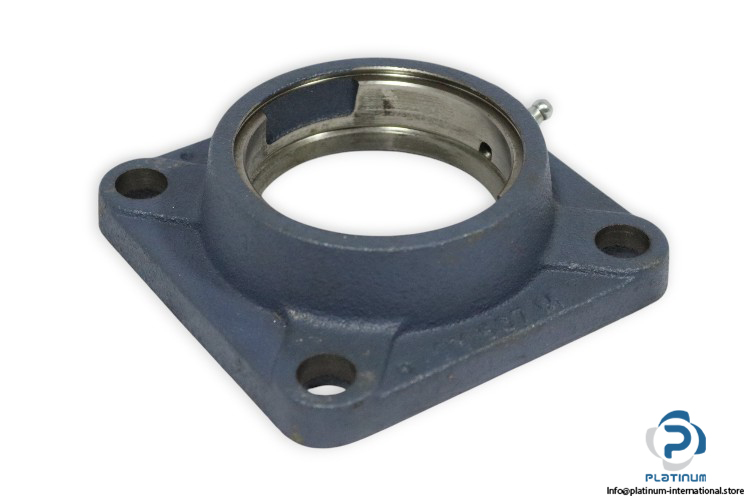

SKF Square Flanged Ball Bearing Unit FY 507M
The SKF Square Flanged Ball Bearing Unit FY 507M is designed for efficient and durable performance in industrial machinery. Featuring a robust cast iron housing and a precise ball bearing setup, this unit is suitable for applications requiring high reliability and long service life.
🔧 Technical Specifications:
- Manufacturer: SKF
- Type: Square Flanged Ball Bearing Unit
- Model: FY 507M
- End Cover: ECY 207
📠Dimensions:
- Spherical Seating Diameter: 72 mm
- Housing Overall Width: 34.5 mm
- Overall Bearing Width (B1): 33.9 mm
- Distance of Attachment Bolts (J): 92 mm
- Overall Length: 118 mm
- Diameter of Attachment Bolt Hole (N): 14 mm
- Flange Width: 13 mm
- Overall Width: 34.5 mm
š™ï¸ Material and Mounting:
- Material, Housing: Cast Iron
- Mounting: Four-Bolt Base
Designed for robustness and precision, this SKF flanged bearing unit is ideal for a wide range of industrial applications.
