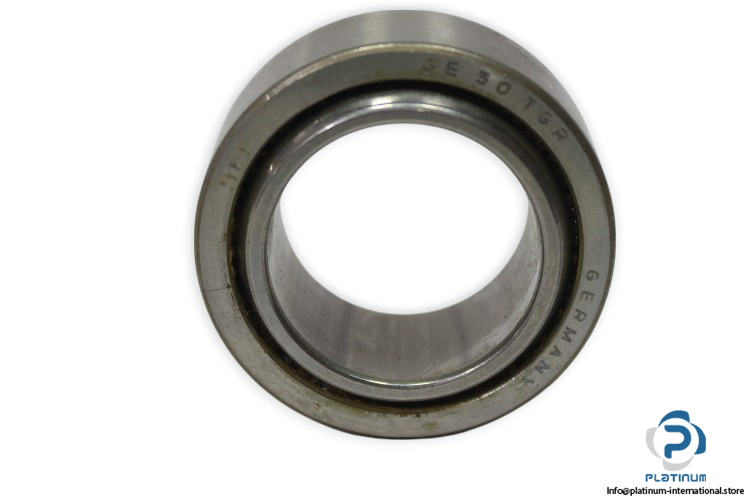

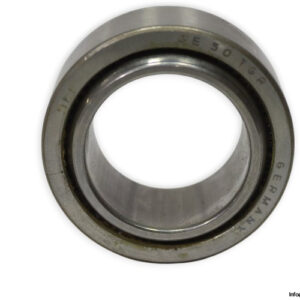

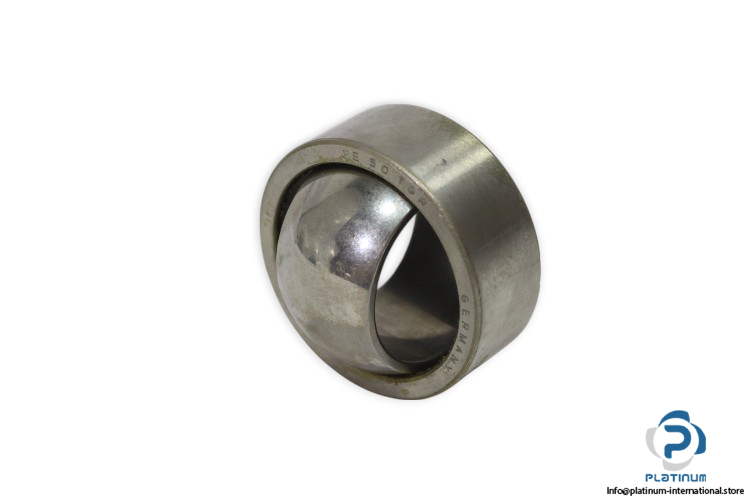

SKF GE 30 TGR SPHERICAL PLAIN BEARING
The SKF GE 30 TGR is a high-quality spherical plain bearing designed for heavy-duty applications requiring high load capacity and durability. Constructed from stainless steel with a pressed inner ring, it ensures reliable performance and long service life in demanding environments.
Manufacturer: SKF
Type: Spherical Plain Bearing
Model: GE 30 TGR
Technical Information
- Bore Diameter (d): 30 mm
- Outer Diameter (D): 47 mm
- Width, Inner Ring: 22 mm
- Width, Outer Ring: 18 mm
- Dynamic Load Rating: 88,000 N
- Static Load Rating: 176,000 N
- Angle: 6 degrees
- Design: TGR, Stainless steel X 22 CrNi 17/1.4057, pressed over the inner ring
