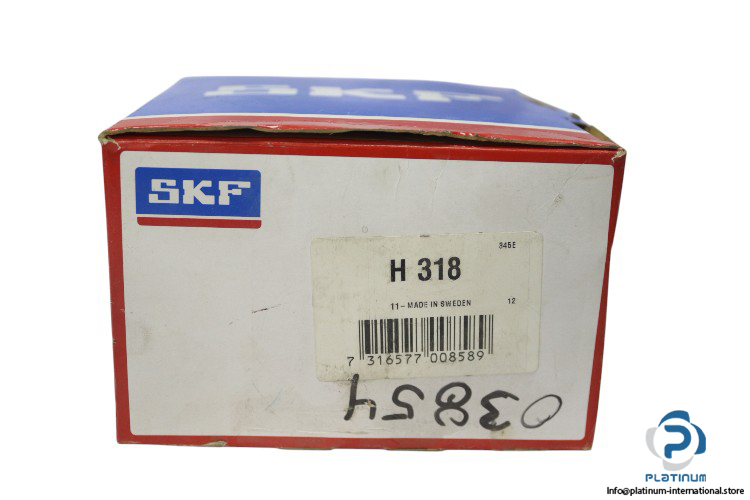

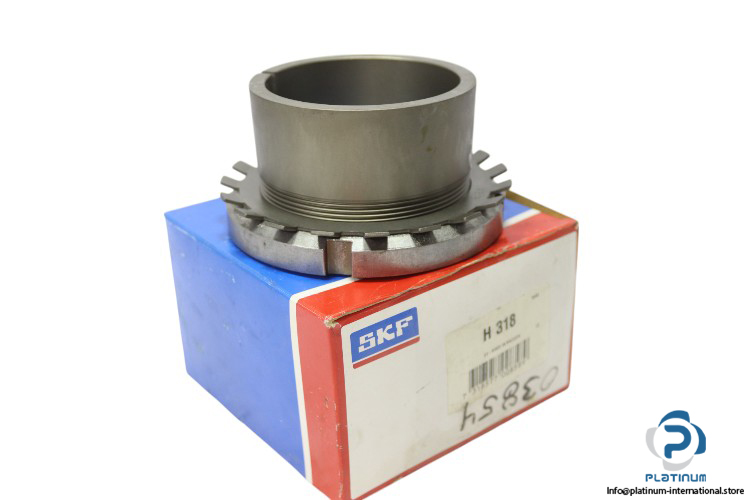

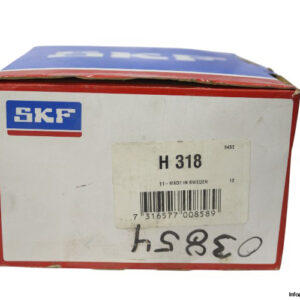

SKF H 318 ADAPTER SLEEVE
The SKF H 318 adapter sleeve is engineered for precise and secure mounting of bearings with tapered bores on cylindrical shafts. It offers high compatibility and ease of installation, making it ideal for demanding industrial applications.
Manufacturer: SKF
Type: Adapter Sleeve
Model: H 318
Technical Information
- Bore Diameter d1: 80 mm
- Outside Diameter Small Taper d: 90 mm
- Outer Diameter Lock Nut: 120 mm
- Width: 65 mm
- Width Lock Nut Including Lock Washer B4: 18 mm
- Thread G: M90x2
- External Taper: 1:12
- Locknut: KM18
- Lock Washer: MB18
