Manufacturer: SKF
Type: Adapter sleeve with KMFE lock nut

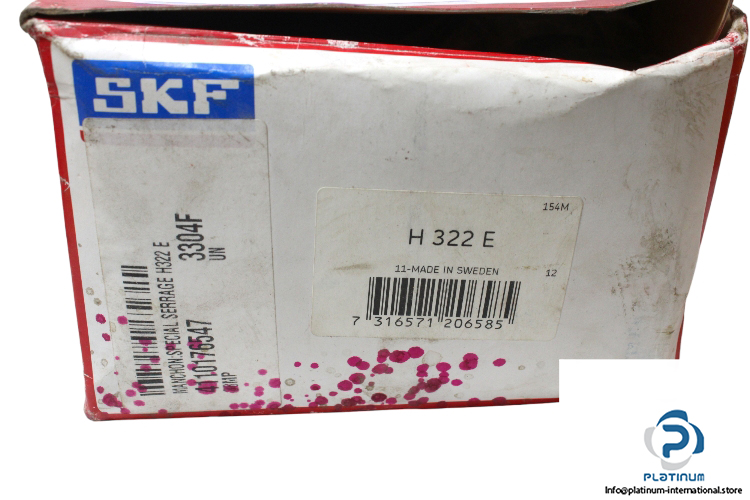

Model: H322E

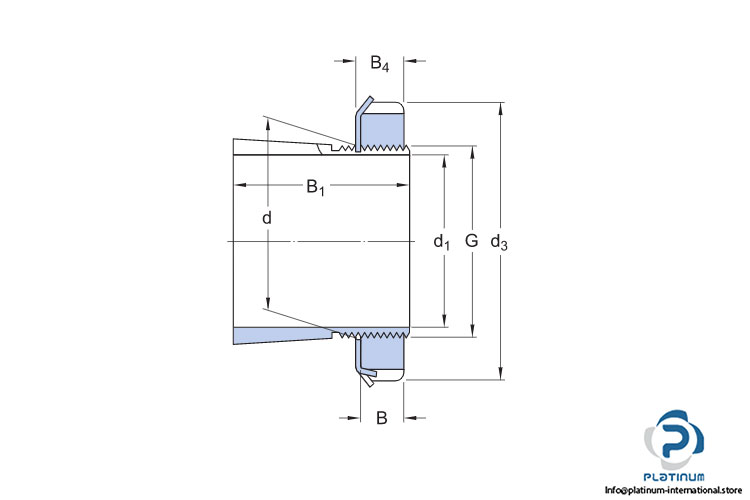

Dimensions:
Bore Diameter d1: 100 mm
Outside diameter small taper d: 110 mm
Outer diameter lock nut d3: 145 mm
Sleeve length B1: 77 mm
Width lock nut B: 21.5 mm
Thread G: M110x2
External taper: 1:12
Locknut: KMFE 22
