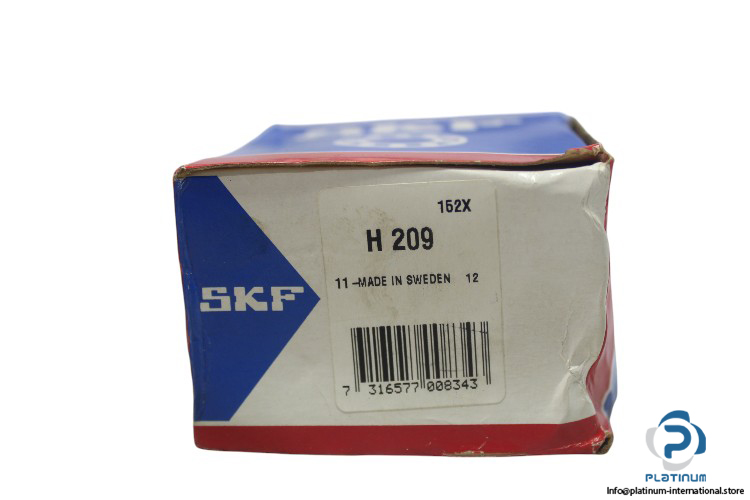

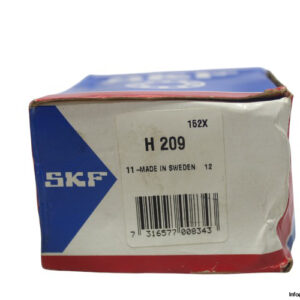

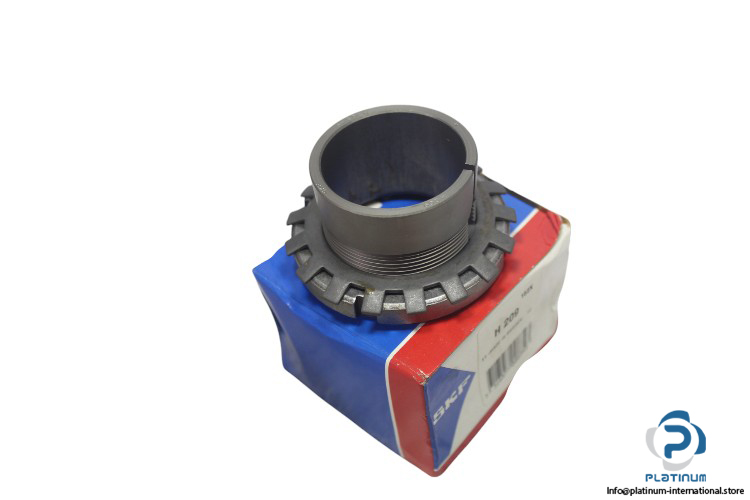

SKF H209 Adapter Sleeve
The SKF Adapter Sleeve H209 is designed for easy mounting and dismounting of bearings on tapered shafts. Its precise dimensions and high-quality materials ensure secure fitment, reliability, and ease of use in industrial applications.
Manufacturer: SKF
Type: Adapter Sleeve
Model: H209
Technical Information:
- Bore Diameter (d1): 40 mm
- Outside Diameter Small Taper (d): 45 mm
- Outer Diameter Lock Nut (d3): 65 mm
- Width: 33 mm
- Width Lock Nut: 10 mm
- Width Lock Nut Including Lock Washer (B4): 11 mm
- Thread (G): M45x1.5
- External Taper: 1:12
- Locknut: KM9
- Lock Washer: MB9
