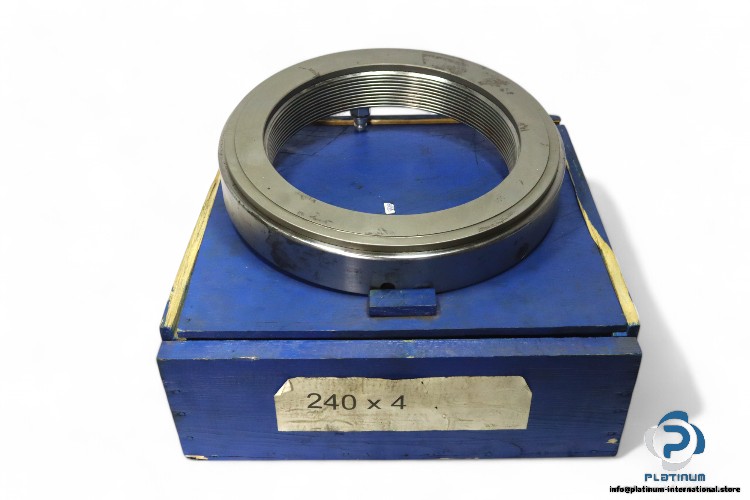

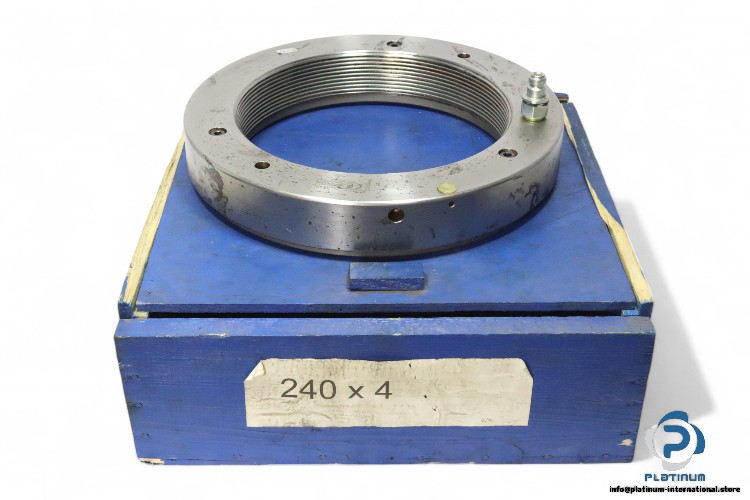

SKF HMV48E Hydraulic Nut

The SKF HMV48E hydraulic nut is designed for mounting and dismounting bearings and other components that require controlled high-force application. With precise piston displacement and high-pressure capability, it ensures safe, efficient, and accurate installation in demanding industrial applications.

Manufacturer: SKF
Type: Hydraulic Nut
Model: HMV48E

Technical information

• Maximum Pressure: 800 bar
• Connecting Thread: Tr 240×4
• Maximum Piston Displacement: 10 mm
• Outer Diameter: 330 mm
• Piston Area: 16 500 mm²
• Piston Inner Diameter: 242 mm
• Piston Outer Diameter: 316 mm
• Piston Width: 9 mm
• Width: 46 mm
