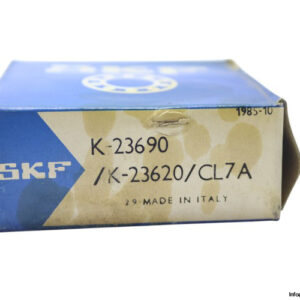

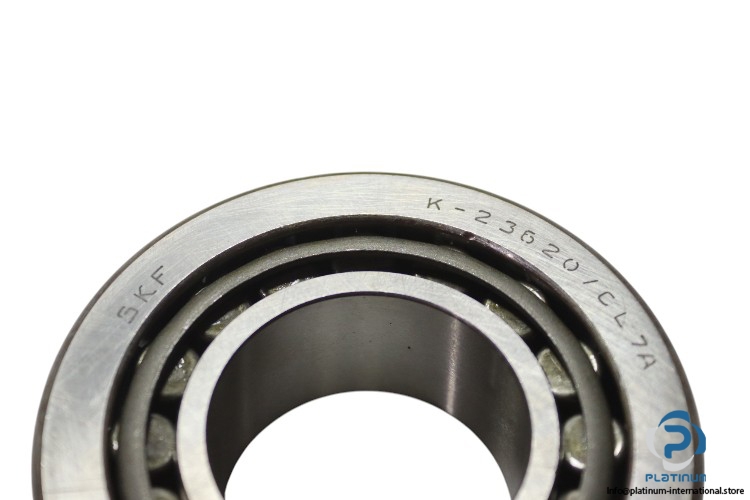

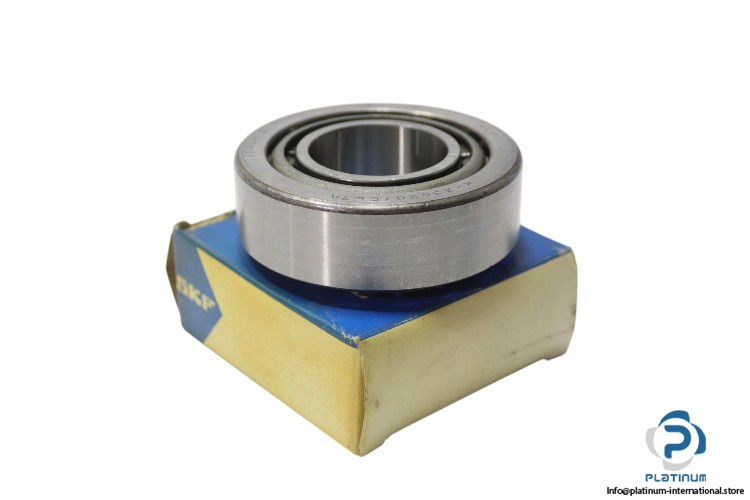

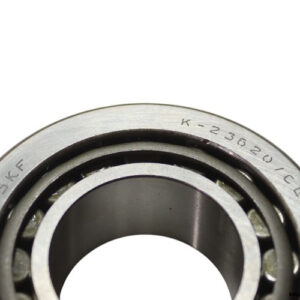

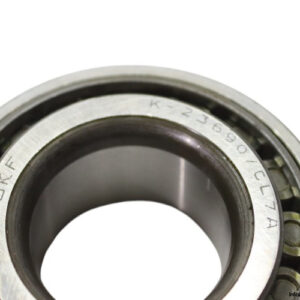

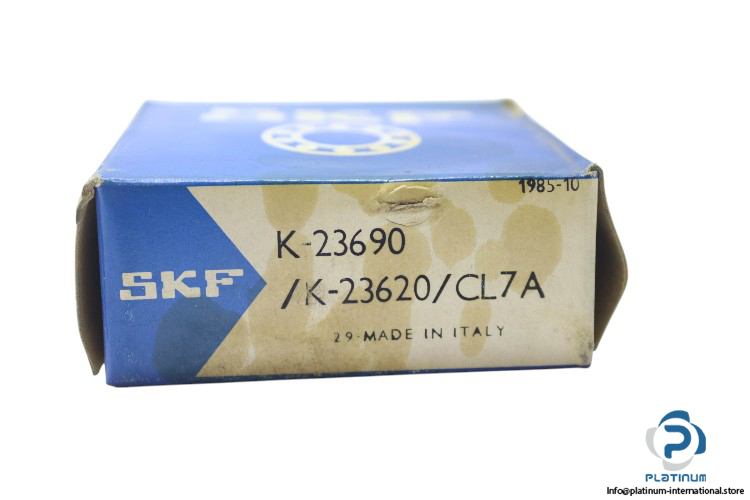

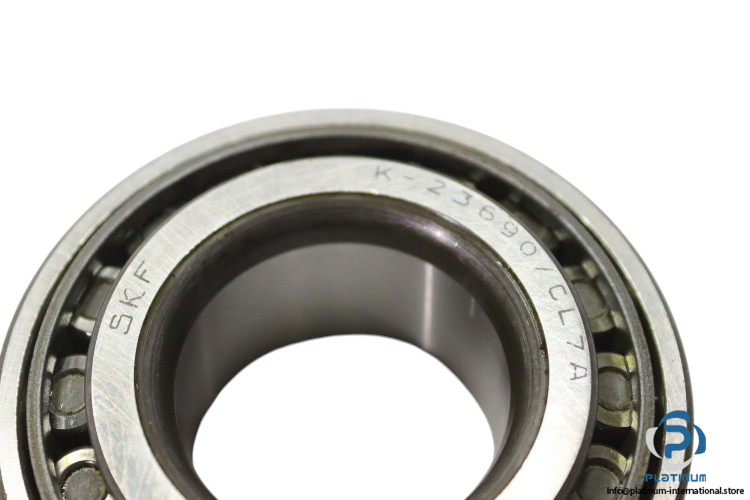

SKF K-23690/K-23620/CL7A TAPERED ROLLER BEARING

This SKF tapered roller bearing is engineered for high-load applications with precision and durability. Featuring a bore diameter of 34.92 mm and outer diameter of 73.02 mm, it offers excellent performance under dynamic and static loads. The CL7A suffix indicates it is a specialized pinion bearing, previously superseded by the CL7C series.

Manufacturer: SKF
Type: Tapered Roller Bearing
Model: K-23690/K-23620/CL7A

Technical Information

• Bore Diameter d: 34.92 mm
• Outer Diameter D: 73.02 mm
• Width B: 26.98 mm
• Dynamic Load Rating: 76,500 N
• Static Load Rating: 93,000 N
• Fatigue Load Limit: 10,400 N
• Limiting Speed: 10,000 rpm
• Reference Speed: 7,000 rpm
• Suffix: CL7A, Pinion Bearing, Superseded by CL7C
