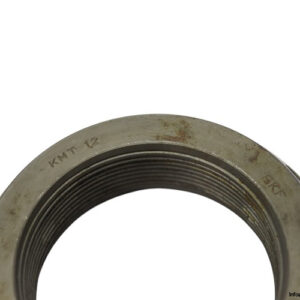

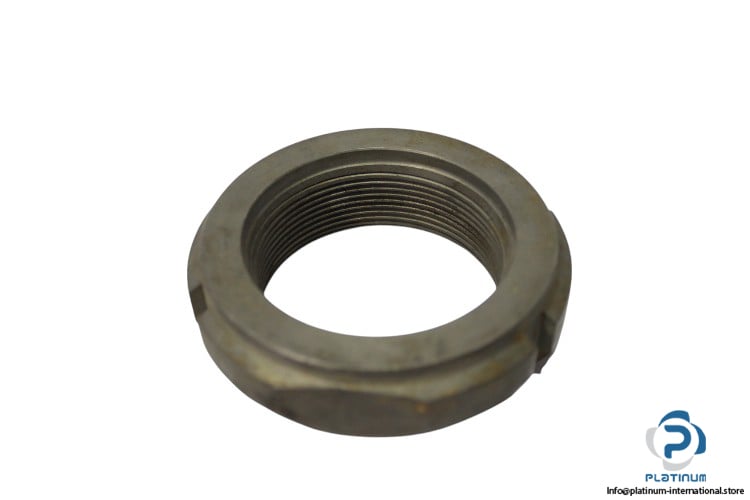

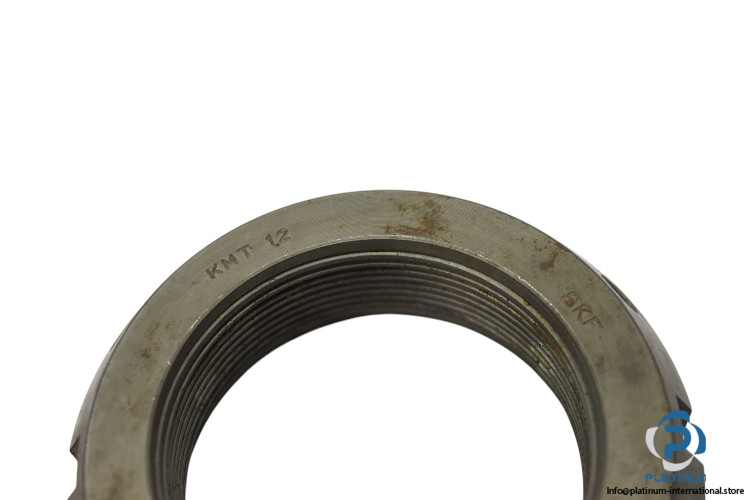

SKF KMT 12 PRECISION LOCK NUT

The SKF KMT 12 precision lock nut is engineered for secure, backlash-free axial positioning of shafts and components. With a robust integrated locking device, it ensures stable mounting under high axial loads in demanding mechanical assemblies.

Manufacturer: SKF
Type: Precision Lock Nut
Model: KMT 12

Technical Information

• Bore Diameter: 60 mm
• Outside Diameter d3: 90 mm
• Width B: 26 mm
• Outside Diameter Locating Side Face d1: 82 mm
• Width Flat Spanner M: 85 mm
• Width Locating Slot b: 8 mm
• Depth Locating Slot h: 3.5 mm
• Thread: M60x2
• Axial Static Load Carrying Capacity: 380000 N
• Locking Device: Incorporated in the lock nut
