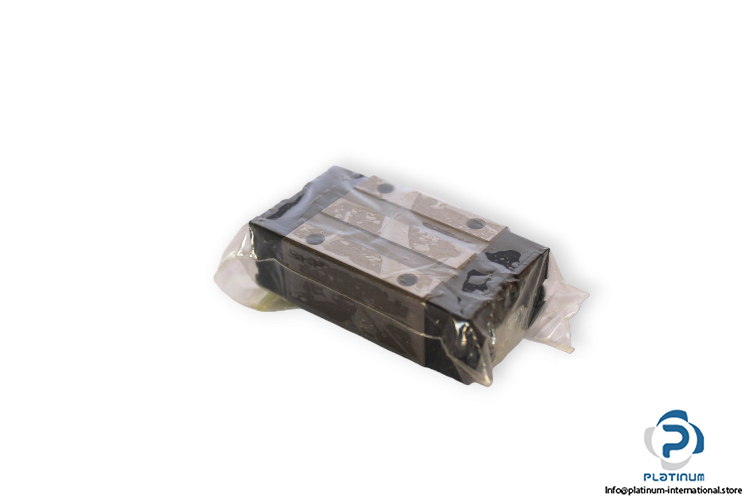

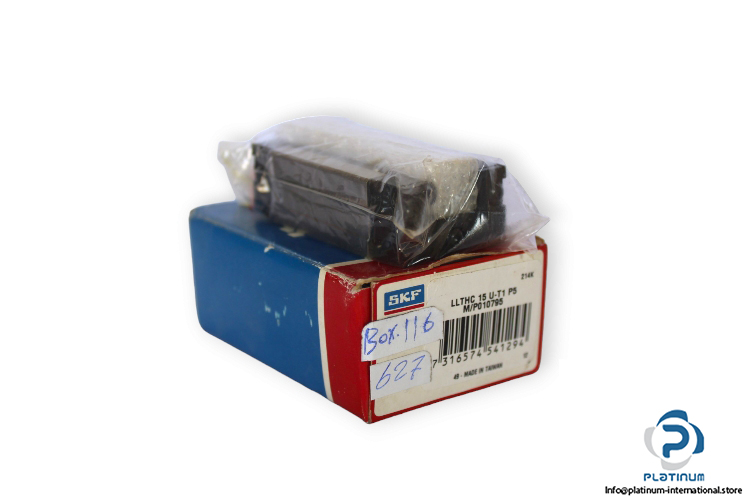

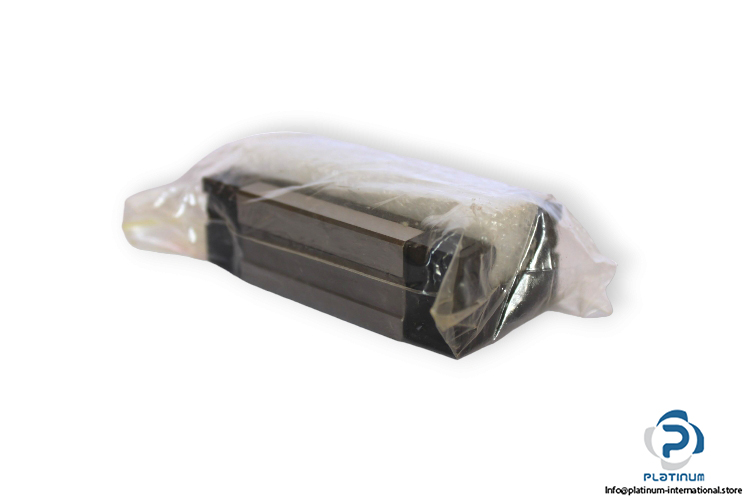

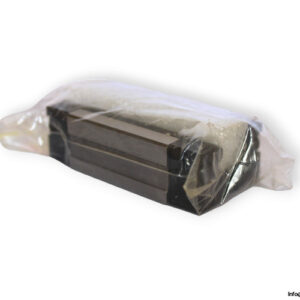

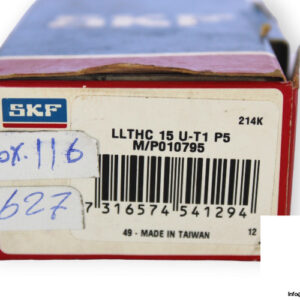

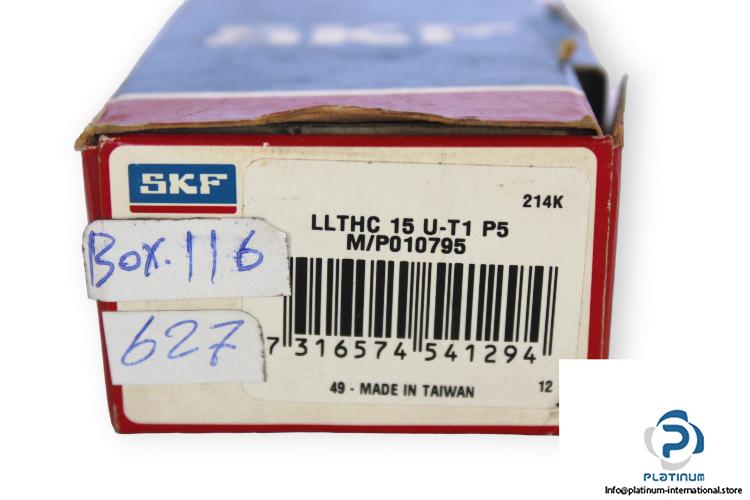

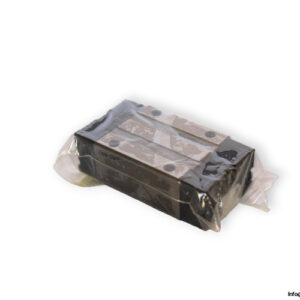

SKF LLTHC15 U-T1 P5 Linear Guideway Carriage
The SKF LLTHC15 U-T1 P5 is a precision linear guideway carriage designed for smooth and accurate linear motion in demanding applications. With a slim-line block design, robust load ratings, and compact dimensions, it is ideal for machine tools, automation systems, and high-precision equipment.
Manufacturer: SKF
Type: Linear Guideway Carriage
Model: LLTHC15 U-T1 P5
Technical information

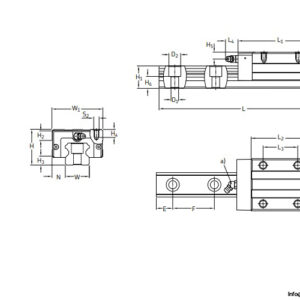

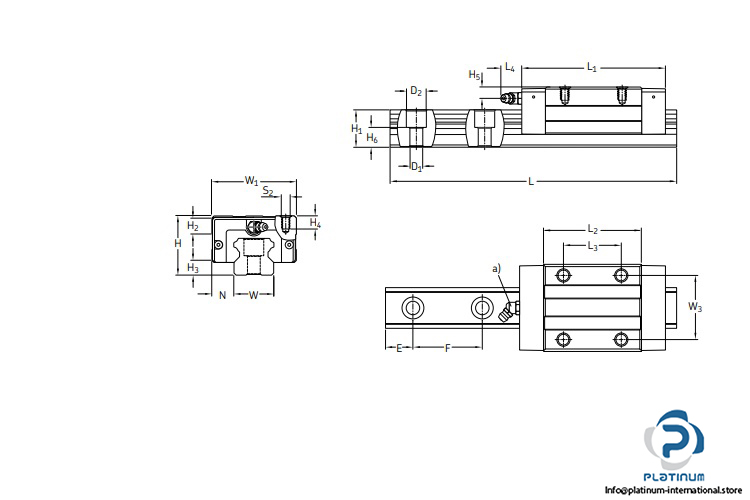

- Size: 15 mm
- Height System H: 24 mm
- Width Carriage W1: 34 mm
- Overall Length Carriage L1: 62 mm
- W3: 26 mm
- L3: 26 mm
- Block Type: Slim-line carriage, standard length, standard height
- Dynamic Load Rating (C): 8400 N
- Static Load Rating (C0): 15400 N
