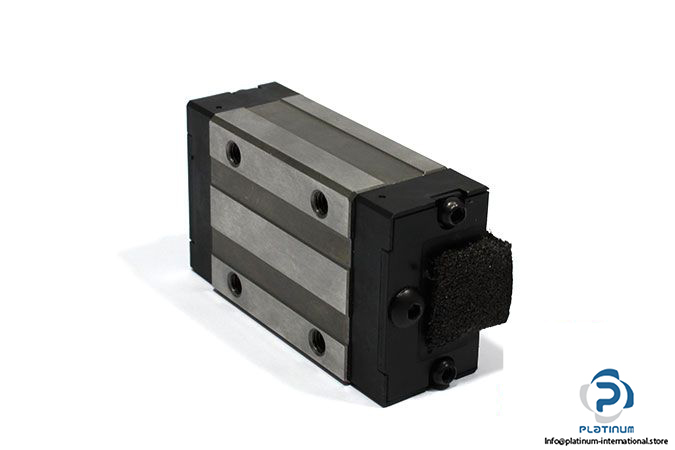

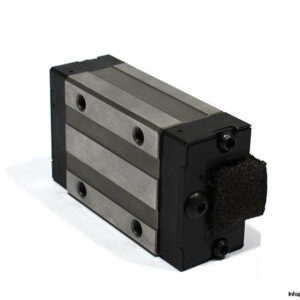

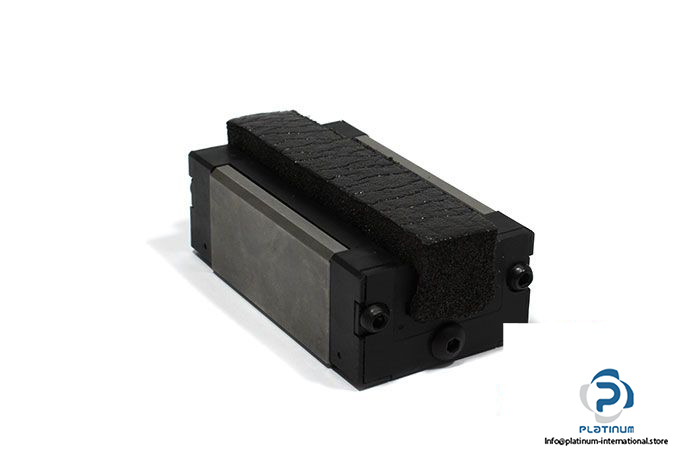

SKF LLTHC25UT1P5 Linear Guideway Carriage
The SKF LLTHC25UT1P5 is a precision-engineered linear guideway carriage designed for smooth and accurate linear motion. With a slim-line block type and robust load ratings, it is suitable for demanding industrial and automation applications requiring reliability and long service life.
Manufacturer: SKF
Type: Linear Guideway Carriage
Model: LLTHC25UT1P5
Technical information

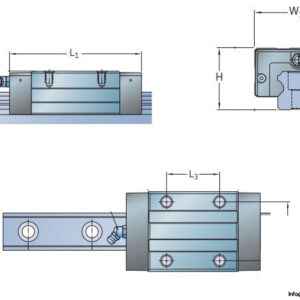

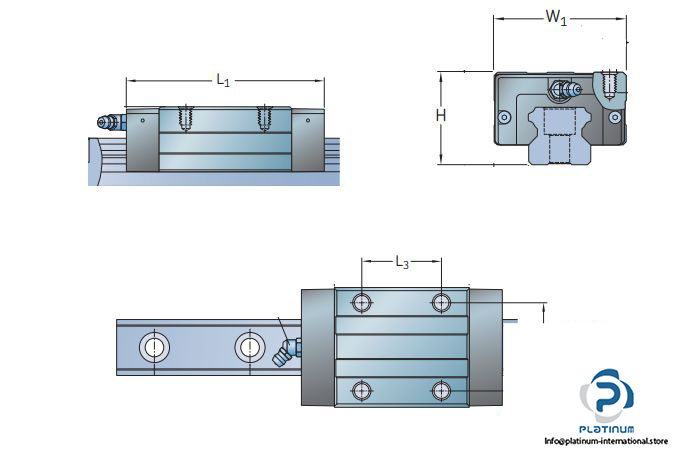

- Size: 25 mm
- Height System (H): 36 mm
- Width Carriage (W1): 48 mm
- Overall Length Carriage (L1): 82 mm
- W3: 35 mm
- L3: 35 mm
- Block Type: Slim-line carriage, standard length, standard height
- Dynamic Load Rating (C): 18,800 N
- Static Load Rating (C0): 30,700 N
