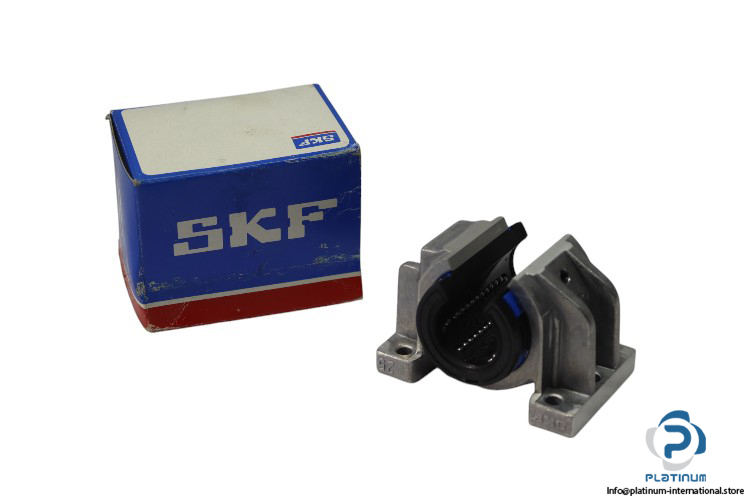

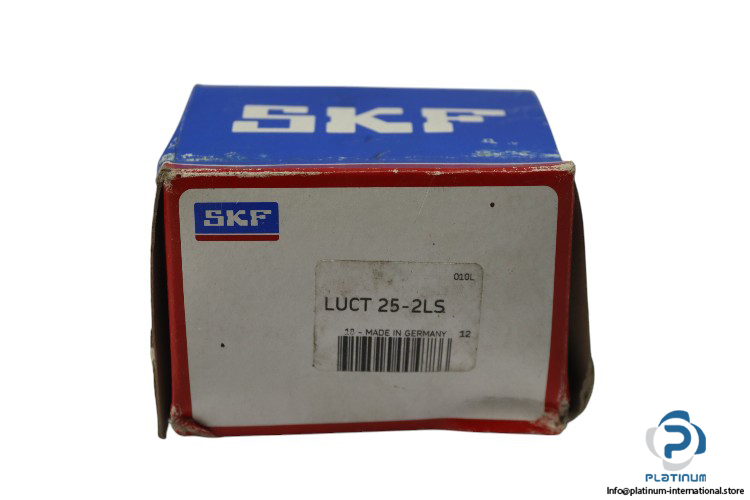

SKF LUCT 25-2LS Linear Bearing Unit
The SKF LUCT 25-2LS Linear Bearing Unit is a high-performance motion control component designed for precision linear movement applications. With an open design, double lip seals (2-LS), and robust construction, this bearing unit ensures smooth operation and durability in demanding environments.
- Manufacturer: SKF
- Type: Linear Bearing Unit
- Model: LUCT 25-2LS
Technical Information
- Shaft Diameter (Fw): 25 mm
- Design Type: Open
- Sealing: 2-LS, 2 Double Lip Seals

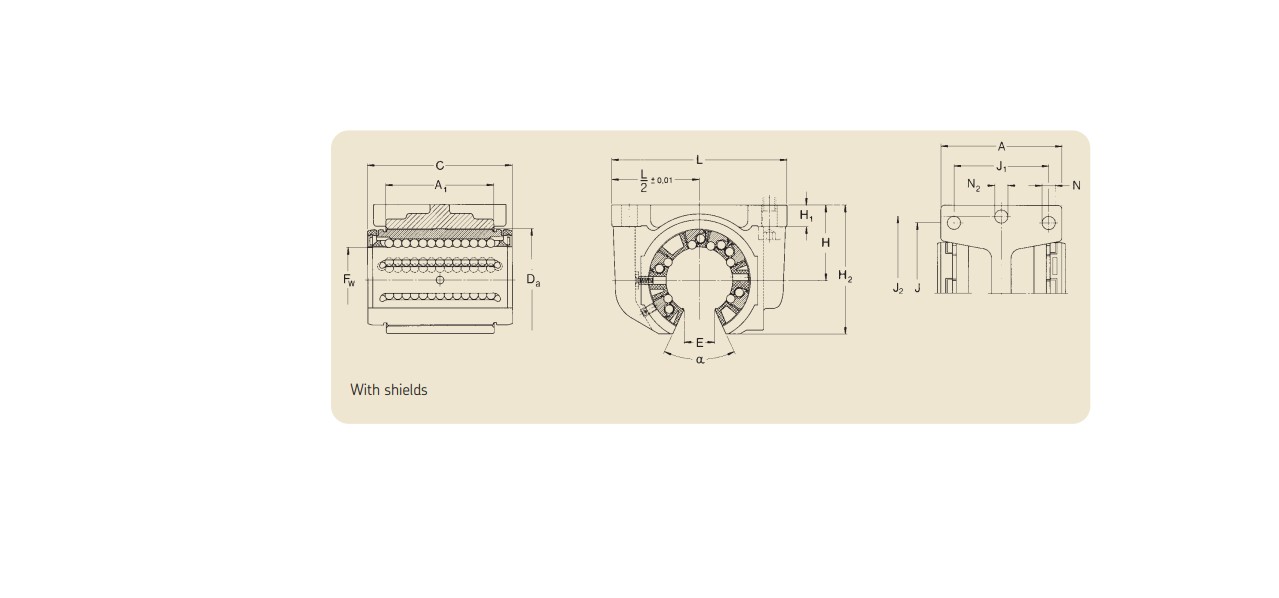

Dimensions
- A: 52 mm
- C: 58 mm
- H: 30 mm
- H2: 51 mm
- L: 80 mm
- E: 13.2 mm
- a: 60°
