SKF LUCT 40 Linear Bearing Units
The SKF LUCT 40 is a robust linear bearing unit designed for smooth motion and reliable performance in linear applications. Built with precision engineering, this open-type bearing ensures stability, durability, and high load capacity for industrial automation systems.
Manufacturer: SKF
Type: Linear Bearing Units
Model: LUCT 40
Technical information
- Shaft Diameter (Fw): 40 mm

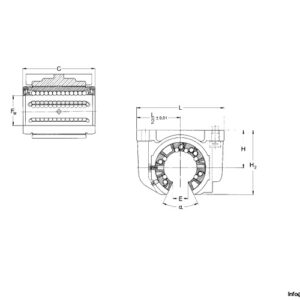

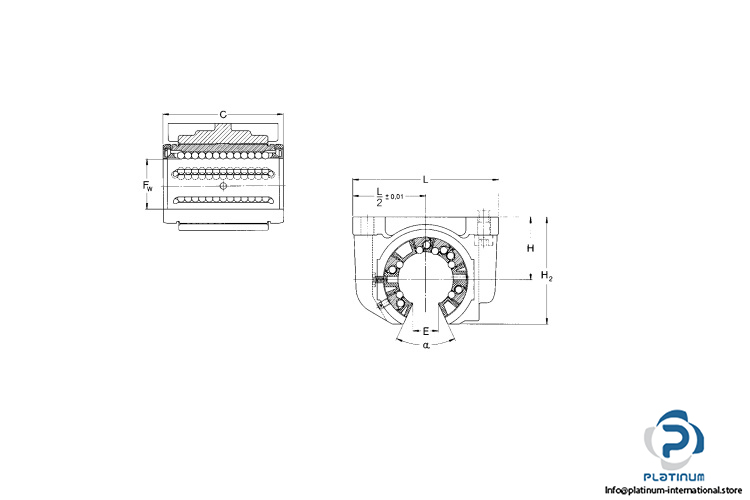

- Dimensions: C: 80 mm, H: 45 mm, H2: 77 mm, L: 108 mm, E: 18.7 mm, a: 50°
- Design Type: Open type
- Dynamic Load Rating: 9000 N
- Static Load Rating: 8150 N
