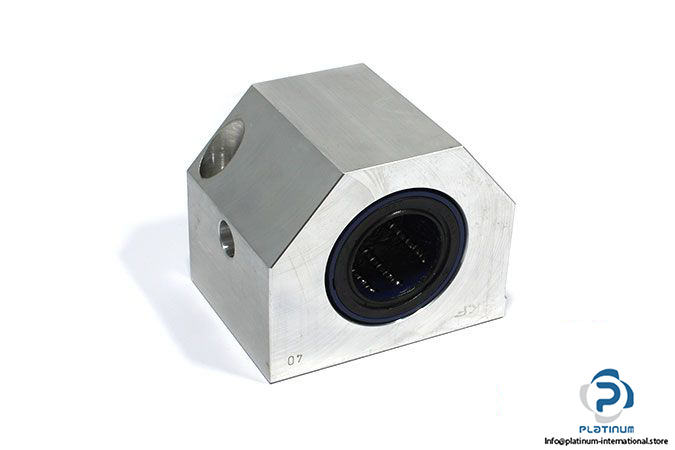

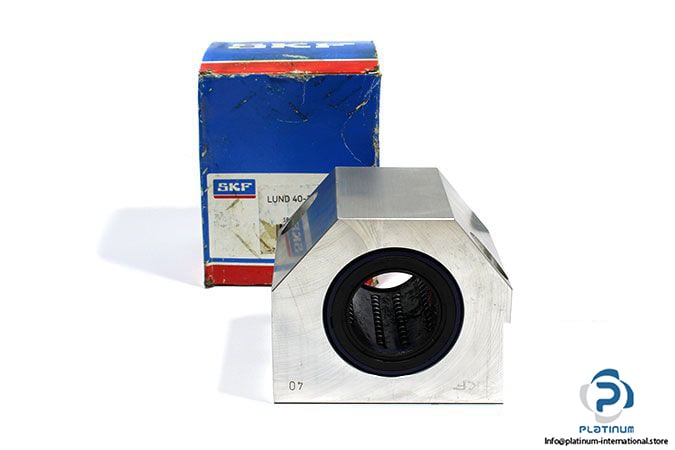

Manufacturer: SKF
Type: Self-aligning linear ball bearing units, closed type, relubricated
Model: LUND40 2LS
Shaft diameter Fw: 40 mm
Design type: Closed type
Housing Format: Aluminum
Dynamic load rating: 7800 N
Static load rating: 5200 N

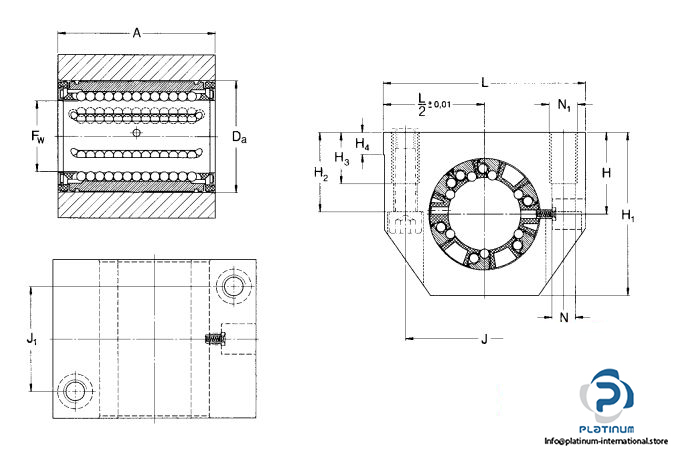

Dimensions:
A: 80 mm
H1: 90 mm
L: 108 mm
J: 86 mm
J1: 58 mm

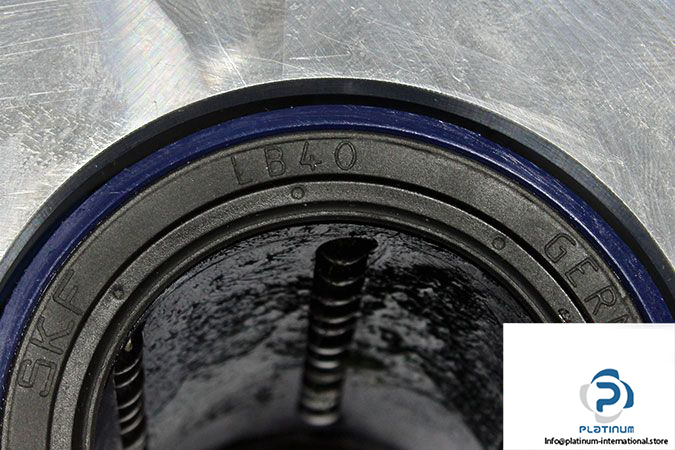

Seals: 2LS, with two seals
Weight: 1.48 kg
