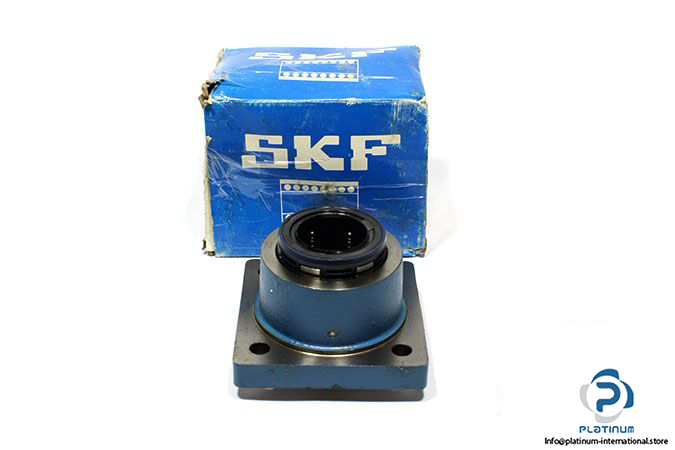

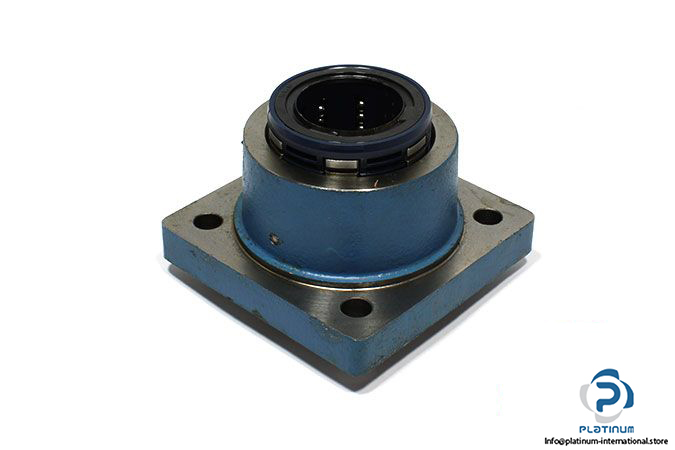

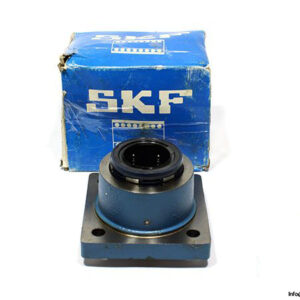

Manufacturer: SKF
Type Flanged self-aligning linear ball bearing units

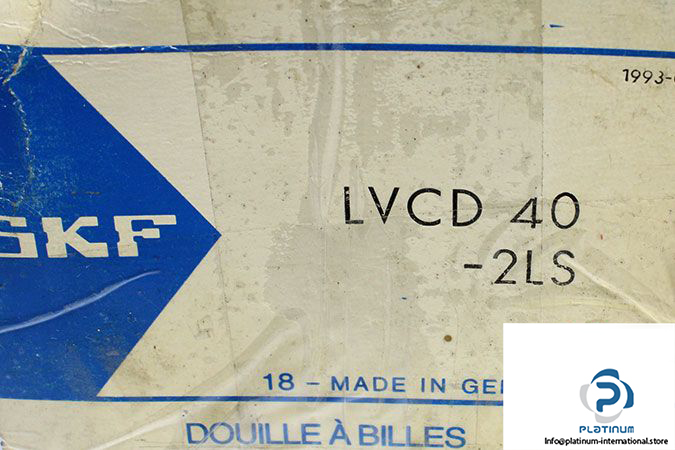

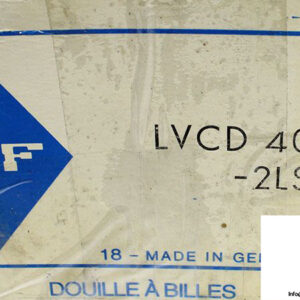

Model: LVCD40 2LS
Shaft diameter Fw: 40 mm
Design type: Closed
Housing Format: Cast iron
Dynamic load rating: 7800 N
Static load rating: 5200 N

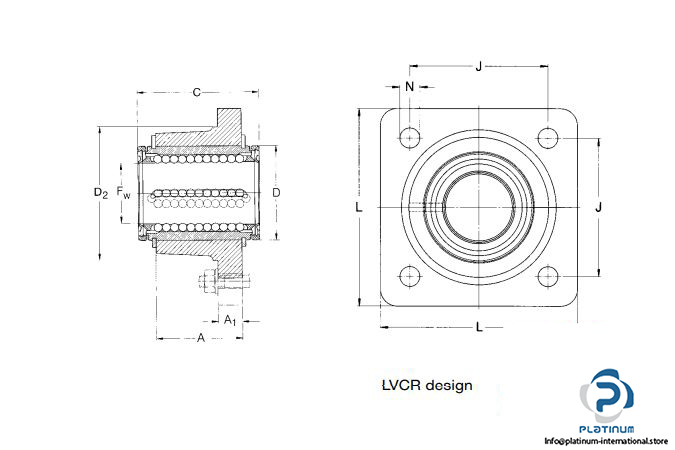

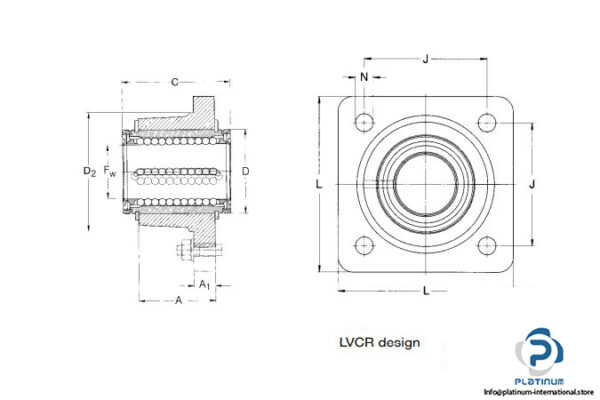

Dimensions:
A: 56 mm
L: 108 mm
C: 80 mm
J: 78 mm
Seals: 2LS, with two seals
Weight: 2 kg
