Manufacturer: SKF

Type: Support roller (yoke-type track roller) with flange rings, integral sealing and relubrication feature

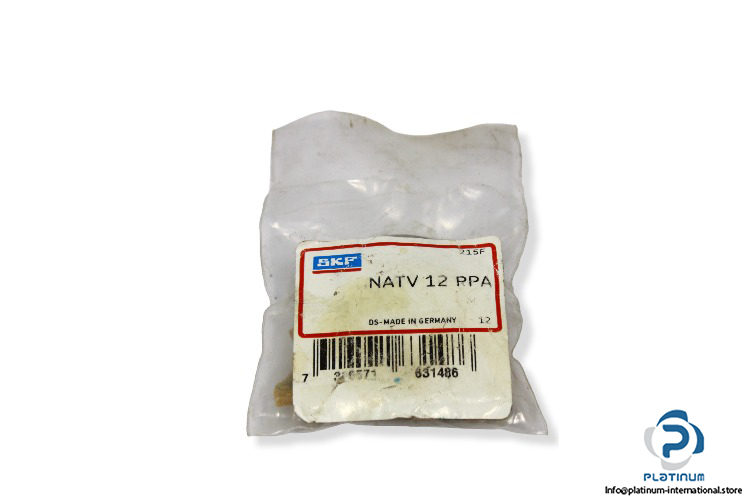

Model: NATV12PPA

Replaces: NATV 12 PP

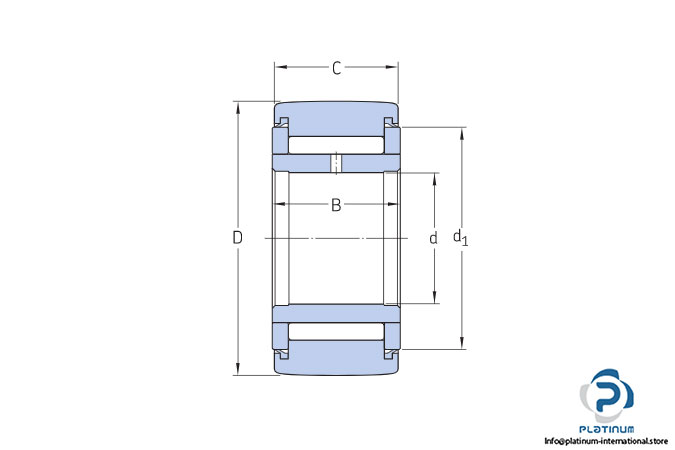

Dimensions:

Bore Diameter d: 12 mm

Outer diameter D: 32 mm

Width of the bearing B: 15 mm

Width outer ring C: 14 mm

Outer ring profile: Crowned

Basic load ratings:

Dynamic C: 9.35 kN

Static C₀: 15.3 kN

Limiting speed: 3000 rpm
