Manufacturer: SKF

Type: Single row needle roller bearing with machined rings, with flanges, without inner ring

Model: NK 14/20

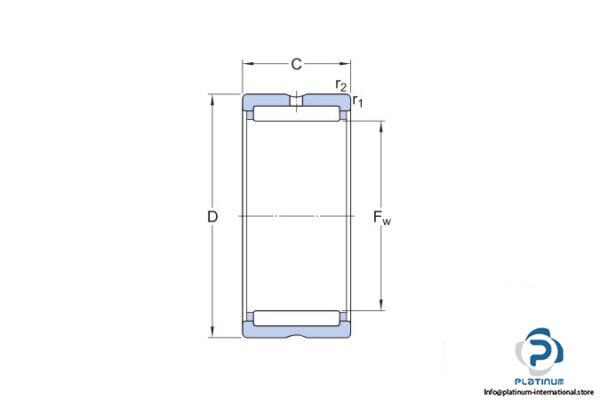

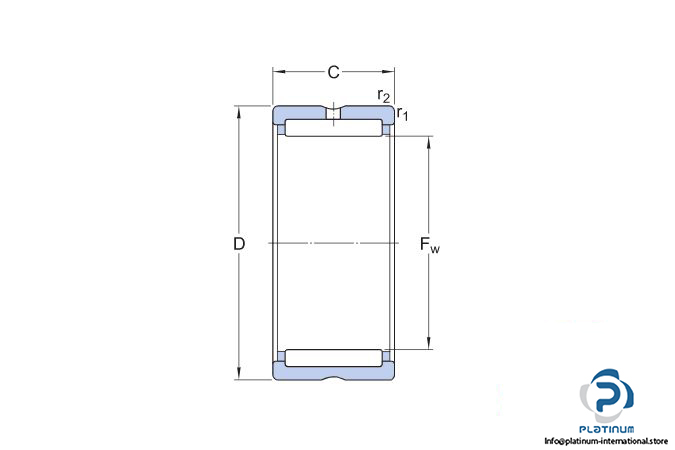

Dimensions:

Diameter under rollers F_w: 14 mm

Outer diameter D: 22 mm

Width outer ring C: 20 mm

Chamfer dimension outer ring r_1,2: 0.3 mm

Basic load ratings:

Dynamic C: 12.8 kN

Static C₀: 16.6 kN

Fatigue load limit P_u: 2 kN

Cage: Sheet steel

Reference speed: 24000 rpm

Limiting speed: 28000 rpm

Weight: 0.03 Kg
