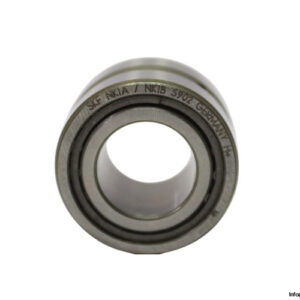

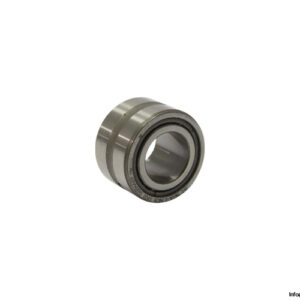

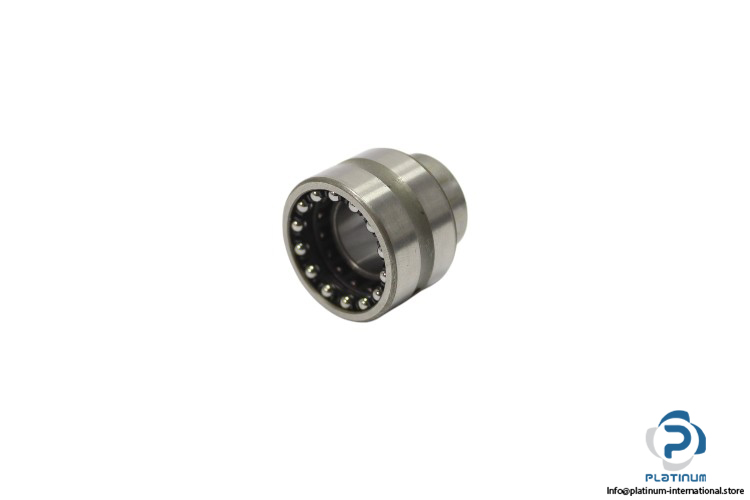

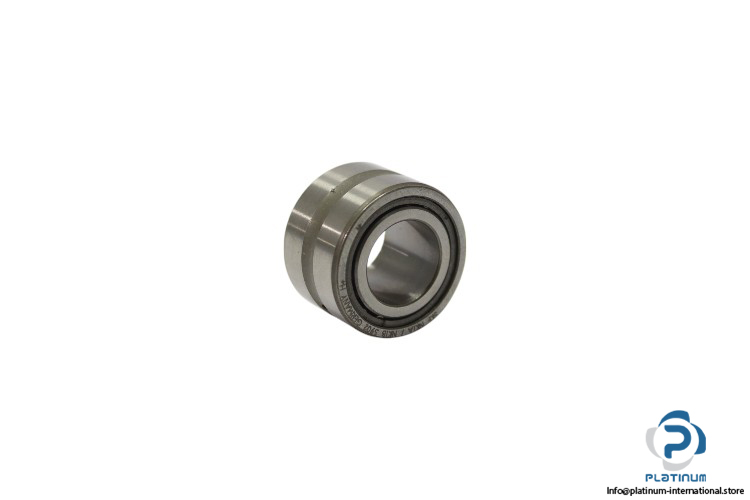

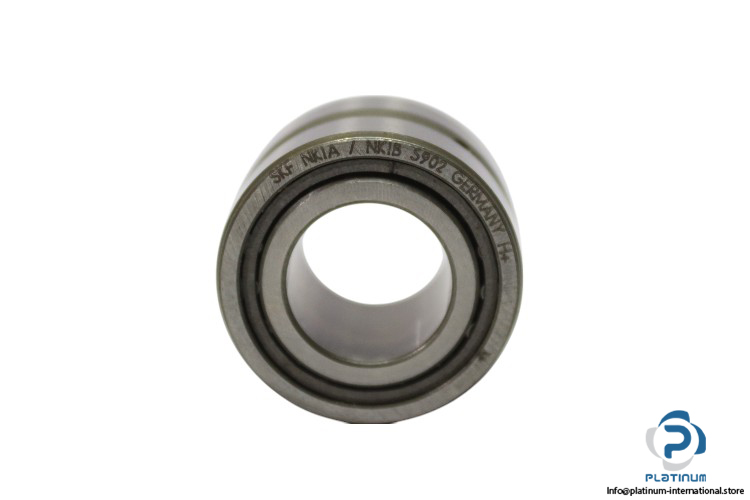

SKF NKIA/NKIB 5902 Combined Needle Roller / Angular Contact Ball Bearing
The SKF NKIA/NKIB 5902 is a high-performance combined bearing that integrates needle roller and angular contact ball bearing features into one compact unit. Designed for applications with both radial and axial loads, it delivers durability, precision, and high-speed capability up to 22000 r/min.
Manufacturer: SKF
Type: Combined Needle Roller / Angular Contact Ball Bearing
Model: NKIA / NKIB 5902
Technical Information:
- Bore Diameter (d): 15 mm
- Outer Diameter (D): 28 mm
- Width (B): 18 mm
- Dynamic Load Rating (Cr): 11.2 kN
- Static Load Rating (C0r): 15.3 kN
- Axial Dynamic Load Rating: 2.27 kN
- Axial Static Load Rating: 2.37 kN
- Fatigue Load Limit, Radial: 1.83 kN
- Fatigue Load Limit, Axial: 0.099 kN
- Reference Speed: 19000 r/min
- Limiting Speed: 22000 r/min
