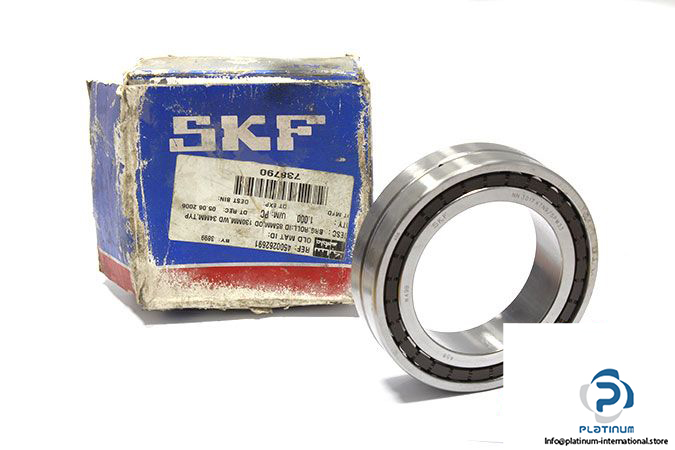

Manufacturer: SKF ‎

Type: Double row‎ Cylindrical Roller Bearing

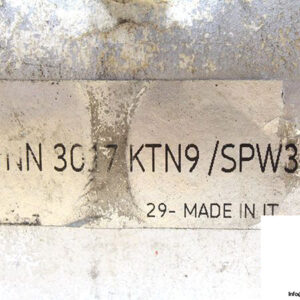

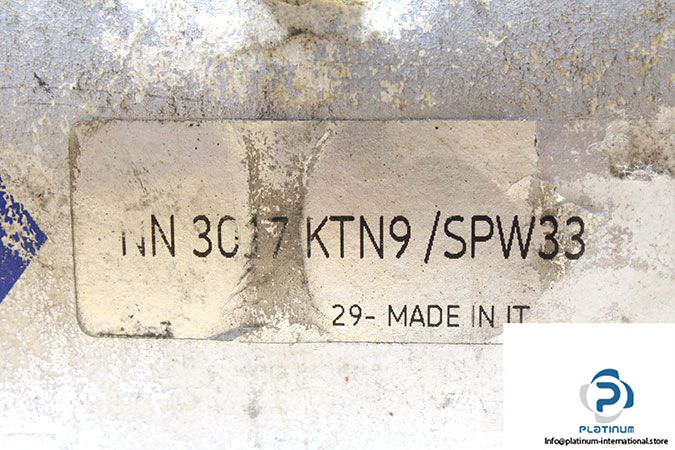

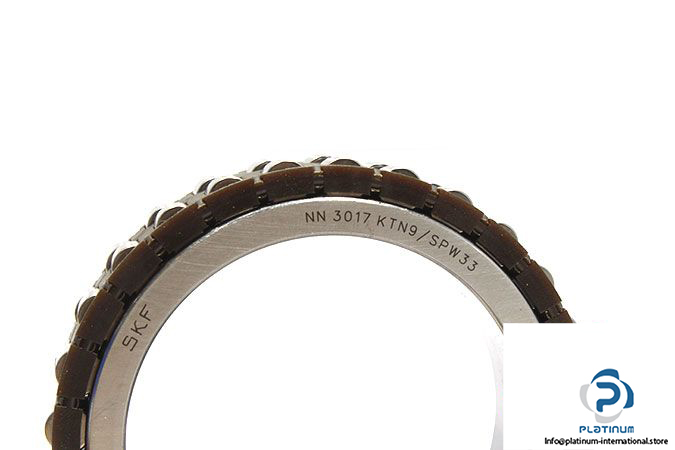

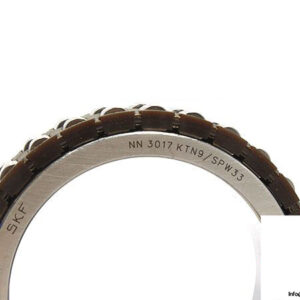

Model: NN3017 KTN9/SPW33‎

Part No: 3017

Bore Diameter: 85 mm

Outer diameter: 130 mm

Width: 34 mm

Basic Load ratings:

Dynamic Load Capacity C_dyn: 125 kN

Static Load Capacity C₀: 204 kN

Fatigue load limit: 23.2 kN

Attainable Speed (Oil): 7500 rpm

Attainable Speed (Grease): 6700 rpm

Bore Design: Tapered bore, taper 1:12

Cage Material: Glass fiber reinforced PA66 cage, roller centered

Accuracy: Dimensional accuracy in accordance with ISO tolerance class 5, running accuracy in accordance with ISO tolerance class 4

Lubrication: Annular groove and three lubrication holes in the outer ring

Weight: 1.5 kg
