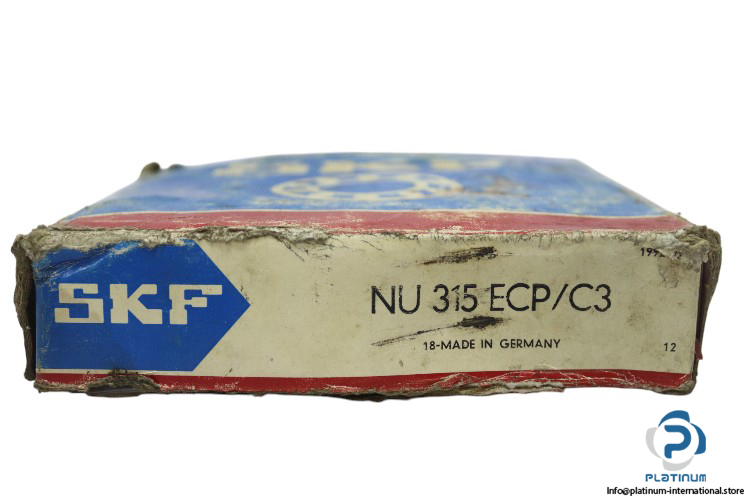

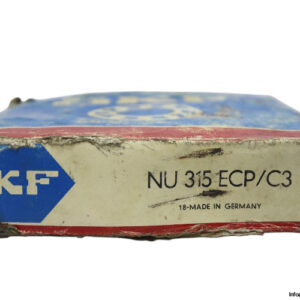

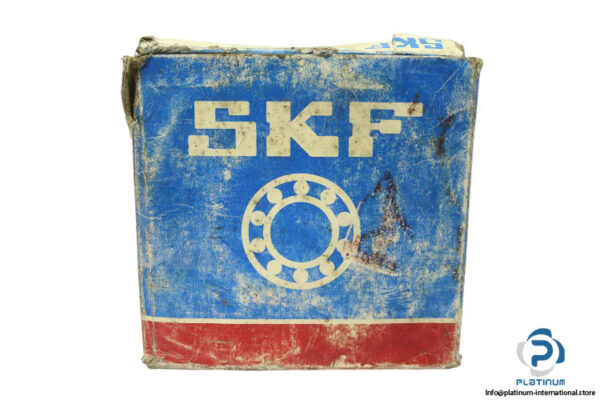

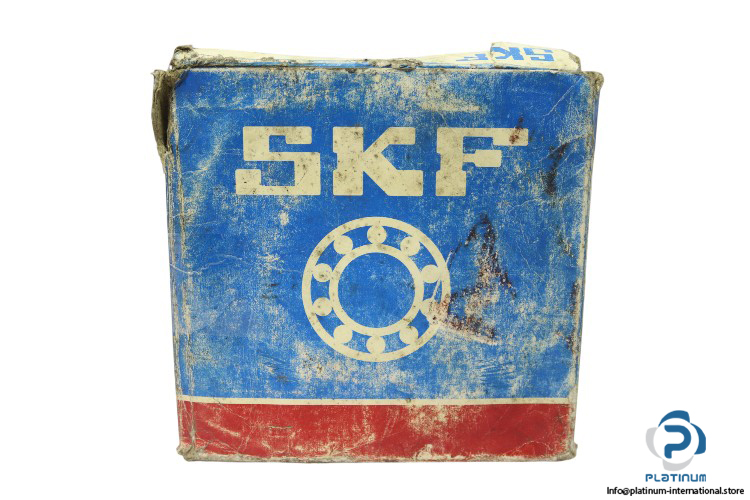

SKF NU 315 ECP/C3 CYLINDRICAL ROLLER BEARING

The SKF NU 315 ECP/C3 is a high-performance cylindrical roller bearing designed for demanding industrial applications. It features a C3 internal clearance for better heat expansion handling, a non-metallic cage for reduced friction, and exceptional load ratings, making it ideal for high-speed, high-load environments.

Manufacturer: SKF
Type: Cylindrical Roller Bearing
Model: NU 315 ECP/C3

Technical Information

• Bore Diameter (d): 75 mm
• Outer Diameter (D): 160 mm
• Width: 37 mm
• Dynamic Load Rating: 280 kN
• Static Load Rating: 265 kN
• Fatigue Load Limit: 33.5 kN
• Limiting Speed: 5300 RPM
• Reference Speed: 4500 RPM
• Cage Material: Non-metallic
• Clearance: C3
