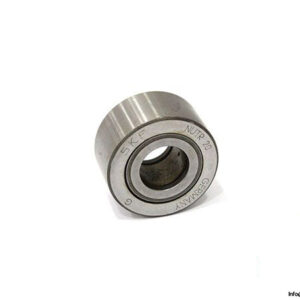

SKF NUTR 20 SUPPORT ROLLER

The SKF NUTR 20 is a high-performance support roller designed for applications requiring heavy radial load handling, durability, and precise motion support. Built with SKF’s trusted engineering, it offers superior static and dynamic load ratings, making it ideal for track runner systems and industrial machinery.

Manufacturer: SKF
Type: Support Roller
Model: NUTR 20

Technical Information

• Bore Diameter (d): 20 mm
• Outer Diameter (D): 47 mm
• Width Outer Ring (C): 24 mm
• Total Width: 25 mm
• Dynamic Load Rating (C): 28.6 kN
• Static Load Rating (C0): 33.5 kN
• Fatigue Load Limit (Pu): 3.9 kN
• Maximum Dynamic Radial Loads (Fr): 17.6 kN
• Maximum Static Radial Loads (F0R): 25 kN
• Limiting Speed: 3800 rpm
