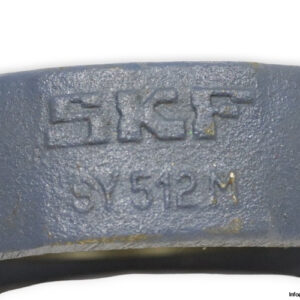

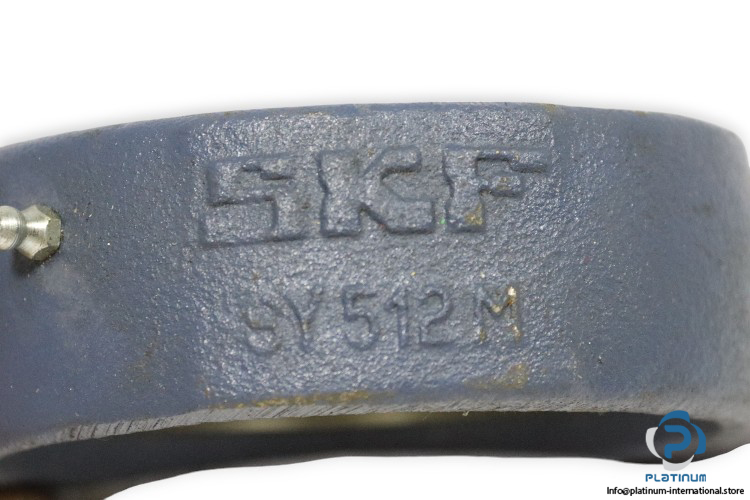

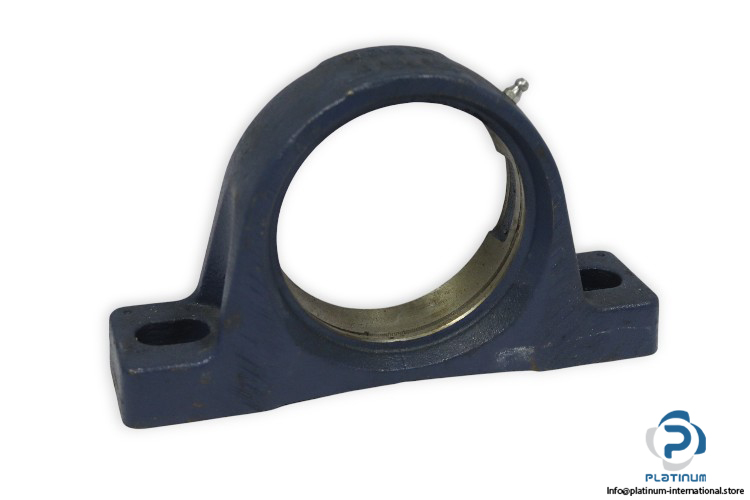

SKF Pillow Block Ball Bearing Unit SY 512M
The SKF Pillow Block Ball Bearing Unit SY 512M is a robust and durable bearing solution designed for industrial applications. Its high-quality cast iron housing ensures strength and reliability, while the precision-engineered dimensions provide optimal performance in various mounting configurations.
🔧 Technical Specifications:
- Manufacturer: SKF
- Type: Pillow Block Ball Bearing Unit
- Model: SY 512M
Dimensions:
- Spherical seating diameter: 110 mm
- Centre height (pillow block): 69.9 mm
- Housing overall width: 60 mm
- Overall height: 137.5 mm
- Overall length: 240 mm
- Distance of attachment bolts (J): 190.5 mm
- Width of attachment bolt hole: 18 mm
- Foot height: 26.5 mm
- Number of bolt holes for fasteners: 2
Material and Mounting:
- Material, housing: Cast iron
- Mounting: Two-Bolt Base
The SKF SY 512M provides reliability and longevity, making it ideal for demanding environments requiring robust bearing units.
