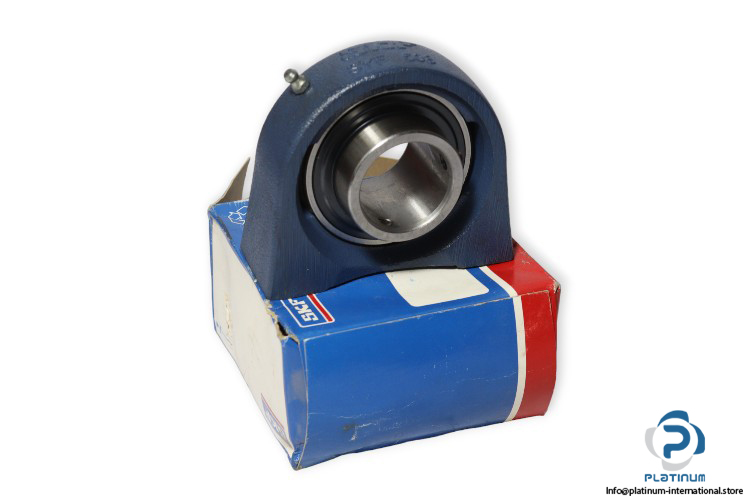

SKF SYF 40 TF PILLOW BLOCK ROLLER BEARING UNIT

skf-SYF-40-TF-pillow-block-roller-bearing-unit-(new)-(carton)
skf-SYF-40-TF-pillow-block-roller-bearing-unit-(new)-(carton)-1
skf-SYF-40-TF-pillow-block-roller-bearing-unit-(new)-(carton)-2
skf-SYF-40-TF-pillow-block-roller-bearing-unit-(new)-(carton)-3
skf-SYF-40-TF-pillow-block-roller-bearing-unit-(new)-(carton)-4
skf-SYF-40-TF-pillow-block-roller-bearing-unit-(new)-(carton)
skf-SYF-40-TF-pillow-block-roller-bearing-unit-(new)-(carton)-1
skf-SYF-40-TF-pillow-block-roller-bearing-unit-(new)-(carton)-2
skf-SYF-40-TF-pillow-block-roller-bearing-unit-(new)-(carton)-3
skf-SYF-40-TF-pillow-block-roller-bearing-unit-(new)-(carton)-4

SKF SYF 40 TF PILLOW BLOCK ROLLER BEARING UNIT

Manufacturer: SKF
Type: Short base pillow block ball bearing unit
Model: SYF40 TF

SKU: 1030844 Category: Tags: , , , , , , , , , , , , , ,
In stock: 3 pcs
Very low
Hurry! Only 3 left in stock.
Add to quote

Manufacturer: SKF
Type: Short base pillow block ball bearing unit
Model: SYF40 TF

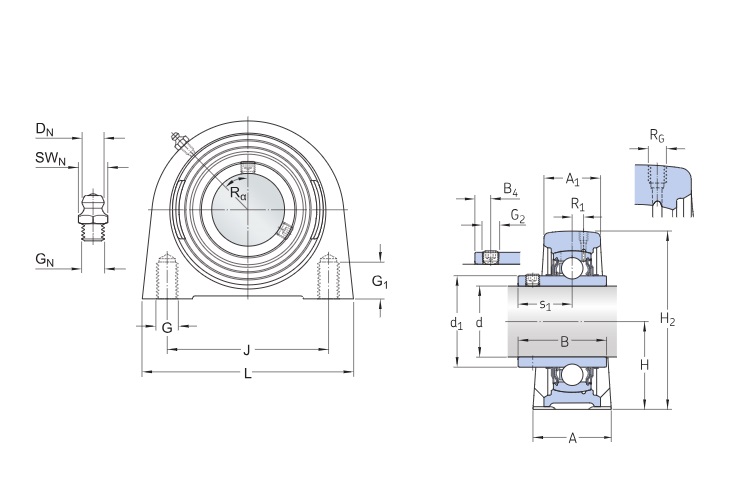

Dimensions
Bore Diameter d: 40 mm
Base width A: 48 mm
Inner ring width B: 49.2 mm
Height of spherical seat center H: 49.2 mm
Distance of attachment bolts J: 88.9 mm
Overall length L: 116 mm
Basic dynamic load rating: 30.7 kN
Basic static load rating: 19 kN
Fatigue load limit: 0.8 kN
Limiting Speed: 4800 rpm
Material, housing: Cast iron
Sealing, bearing: Seal and flinger on both sides
Retaining feature, inner ring: Set screws

Weight 1,74 kg
