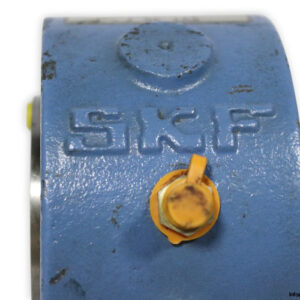

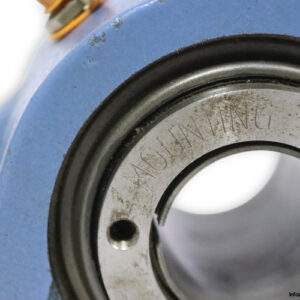

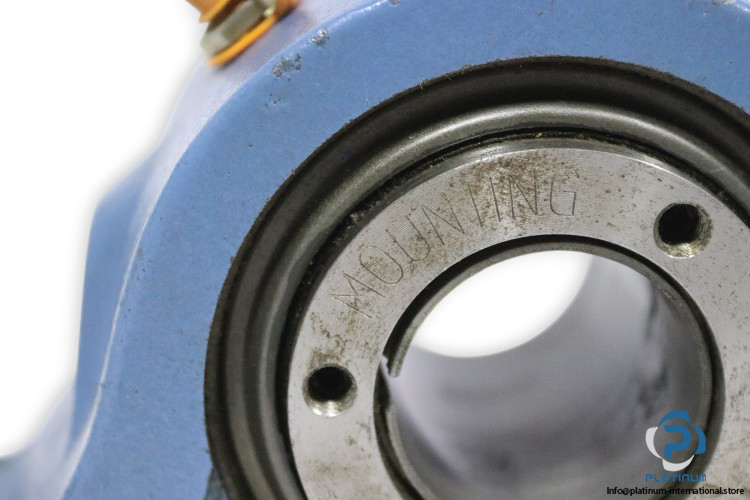

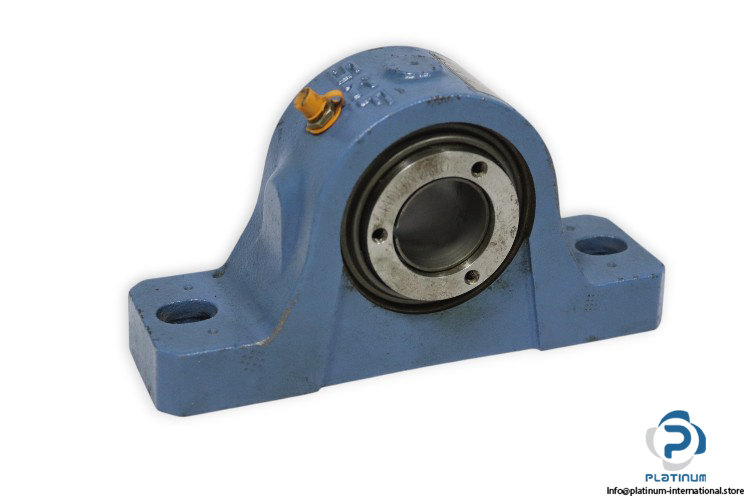

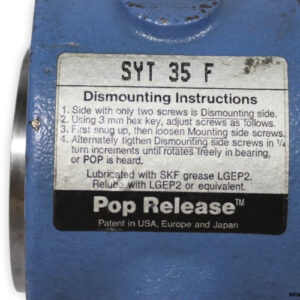

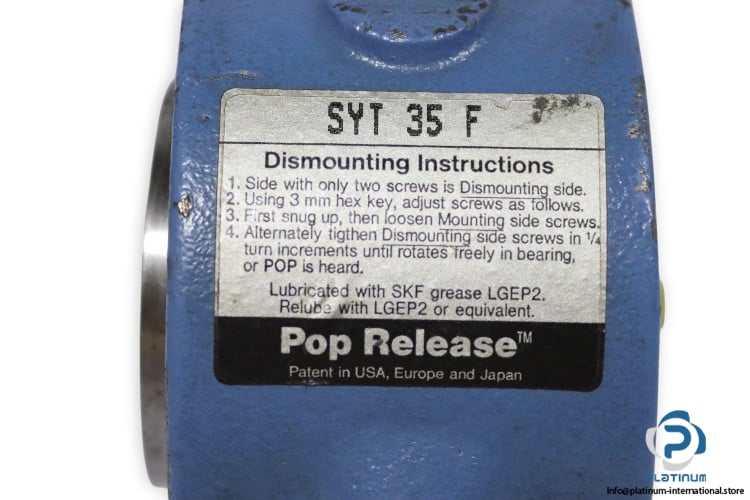

SKF SYT35F Pillow Block Roller Bearing Unit
The SKF SYT35F, replaced by SYNT 35 F, is a robust pillow block roller bearing unit designed for heavy-duty applications. Featuring a 35 mm bore diameter and a durable two-bolt base, this unit provides exceptional performance and reliability.
🔧 Technical Specifications:
- Manufacturer: SKF
- Type: Pillow Block Roller Bearing Unit
- Model: SYT35F (Replaced by SYNT 35 F)
- Bore Diameter: 35 mm
- Housing Overall Width: 60 mm
- Inner Ring Width B: 65 mm
- Housing Height H: 111 mm
- Centre Height (Pillow Block): 60 mm
- Housing Foot Height: 25 mm
- Distance of Attachment Bolts J: 170 mm
- Housing Length L: 205 mm
- Width Foot Slot Width N: 15 mm
- Attachment Bolt Diameter: 12 mm
- Bearing Type: Spherical Roller Bearing
- Mounting: Two-Bolt Base
- Bearing Position: Locating Unit
- Locking Device: SKF ConCentra
- Basic Dynamic Load Rating: 86.5 kN
- Basic Static Load Rating: 85 kN
- Limiting Speed: 4,100 rpm
- Fatigue Load Limit: 9.3 kN
Engineered with a high load capacity and advanced SKF ConCentra locking mechanism, the SYT35F offers reliable performance for industrial machinery. Its spherical roller bearing type ensures durability under heavy loads, while the two-bolt base simplifies installation.
