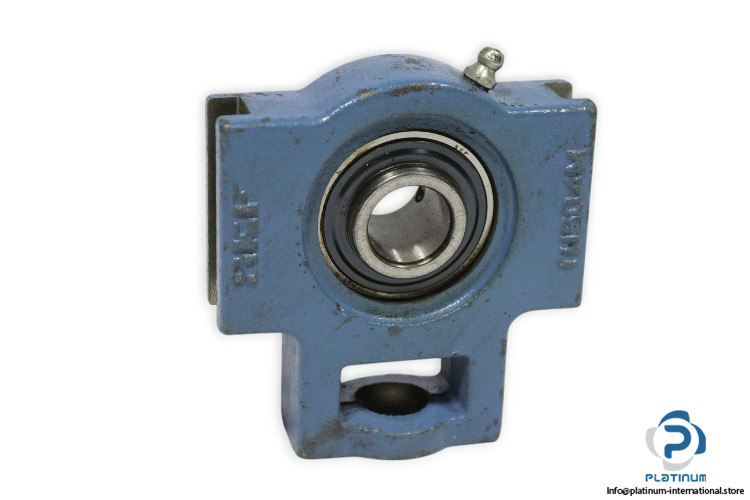

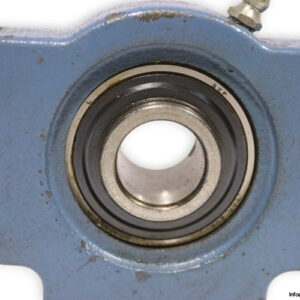

SKF TU20TF Take Up Ball Bearing Unit
The SKF TU20TF Take Up Ball Bearing Unit is designed for efficient support and adjustment in various industrial machinery applications. With a bore diameter of 20 mm, this unit features a durable cast iron housing with a locking device set screw for secure attachment. The bearing is sealed with flingers on both sides, ensuring long-lasting protection against contamination. With a basic dynamic load rating of 12.7 kN and a limiting speed of 8,500 r/min, the SKF TU20TF unit provides reliable performance under heavy loads and high speeds.
🔧 Technical Specifications:
- Manufacturer: SKF
- Type: Take Up Ball Bearing Unit
- Model: TU20TF
- Housing No.: TU 504 M
- Bearing No.: YAR 204-2F
- Bore Diameter (d): 20 mm
- Overall Width (A): 34 mm
- Width of Piloting Groove (A1): 13.5 mm
- Bearing Width: 31 mm
- Overall Height (H): 92 mm
- Height of Attachment End (H2): 54 mm
- Overall Length (L): 97 mm
- Diameter of Attachment Bolt Hole (N): 19 mm
- Basic Dynamic Load Rating (C): 12.7 kN
- Basic Static Load Rating (C0): 6.55 kN
- Fatigue Load Limit (Pu): 0.28 kN
- Limiting Speed: 8,500 r/min
- Housing Type: Take-up
- Locking Device: Set screw
- Material (Housing): Cast iron
- Sealing (Bearing): Seal and flinger on both sides
