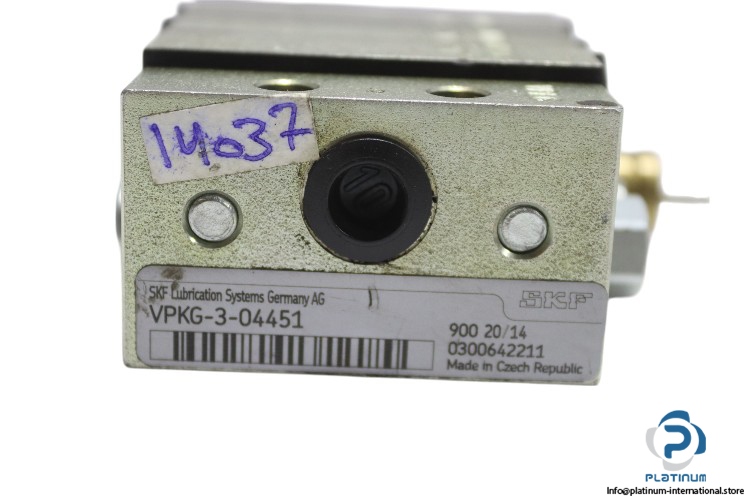

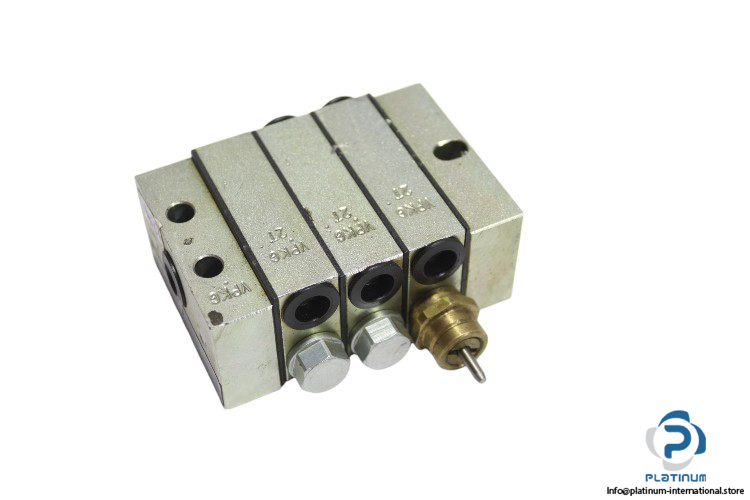

SKF Progressive Metering Device VPKG-3-04451

The SKF Progressive Metering Device VPKG-3-04451 is designed for precise lubrication control in industrial applications. With 3 sections and 6 possible outlets, this device operates efficiently under high pressures with a robust construction.

Manufacturer: SKF

Model: VPKG-3-04451

Type: Progressive Metering Device (inch-threaded Connectors)

Part No.: 0300642211, 900 20/14

Technical Information:

• Connection: 1/8 inch
• Number of Progressive Metering Device Sections: 3
• Number of Possible Outlets: 6
• Ambient Temperature Range: -25 to +90 °C
• Material for:
  • Inlet Plate, Separator Plate, and End Plate: Steel, tinned/nitrile-butadiene rubber
  • Sections (Piston Plates): Steel, galvanized
• Operating Pressure Max.: Oil 200 bar, Grease 300 bar
• Dynamic Viscosity: More than 12 mm²/s
