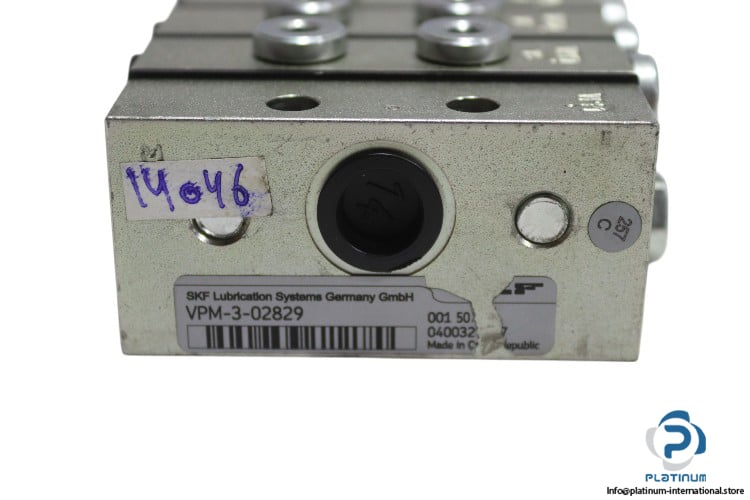

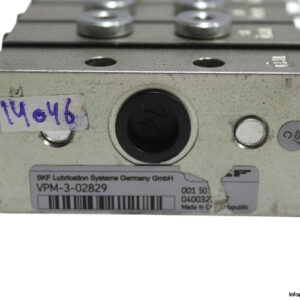

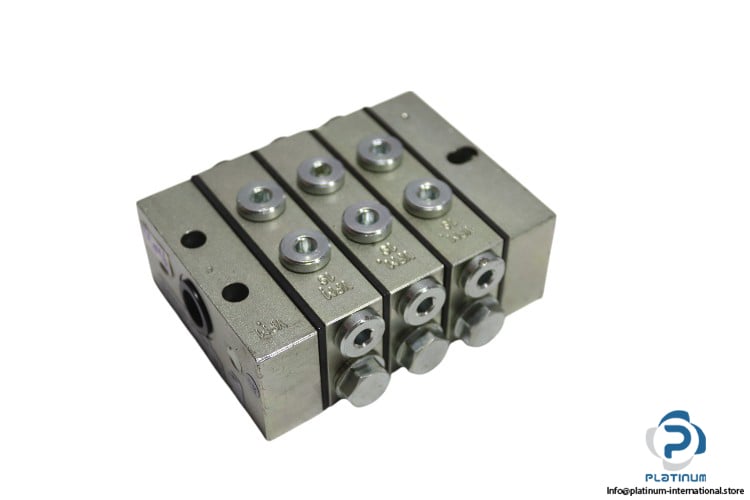

SKF VPM-3-02829 Progressive Metering Device (Metric Thread)
The SKF VPM-3-02829 Progressive Metering Device is designed for precise lubrication distribution. This device ensures reliable performance with its high operating pressure and a range of material specifications, making it ideal for heavy-duty lubrication systems.
Manufacturer: SKF
Model: VPM-3-02829
Type: Progressive Metering Device (Metric Thread)
Code: 257 C
Technical Information:
- Connection Inlet & Outlet: ¼ & 1/8 inch (M14x1.5 & M10x1)
- Number of Progressive Metering Device Sections: 3
- Number of Possible Outlets: 6
- Ambient Temperature Range: -25 to +90 °C
- Material for Inlet Plate, Separator Plate, and End Plate: Steel, tinned/nitrile-butadiene rubber
- Material for Sections (Piston Plates): Steel, galvanized
- Operating Pressure Max: Oil 200 bar, grease 300 bar
- Dynamic Viscosity: More than 12 mm²/s
