Manufacturer: SKF

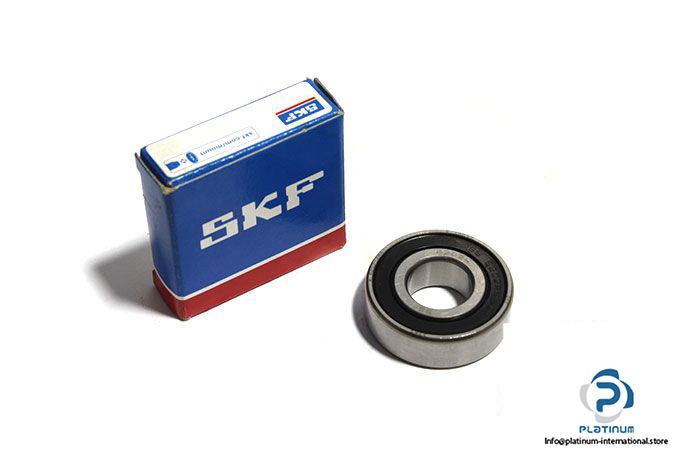

Type: Deep Groove Ball Bearing

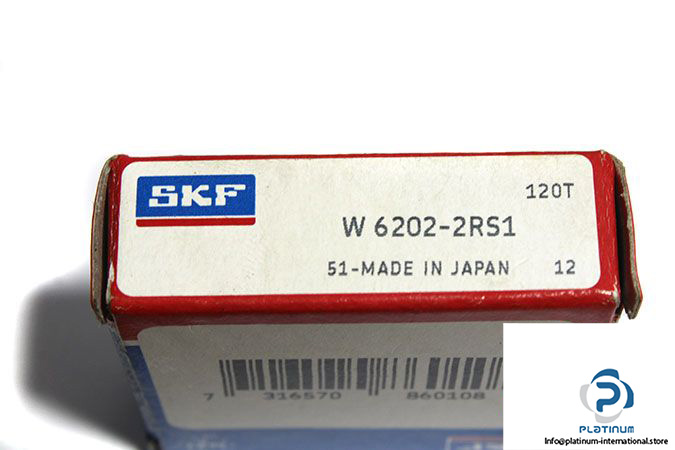

Model: W 6202 2RS1

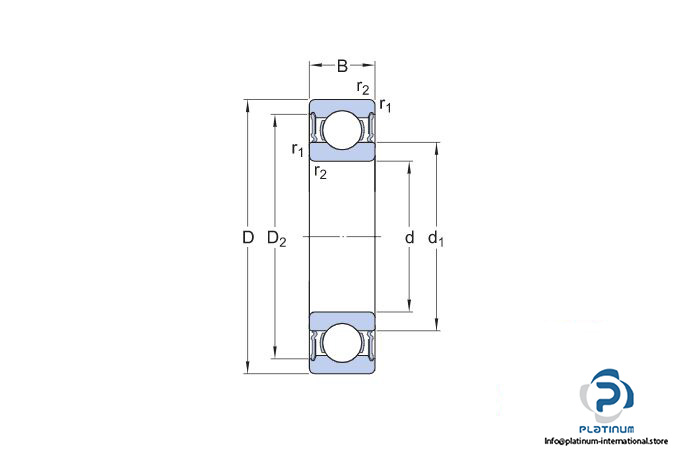

Dimensions

Bore diameter d: 15 mm

Outer diameter D: 35 mm

Width B: 11 mm

Material: SS-Stainless Steel

Minimum chamfer dimension r_1,2: 0.6 mm

Basic load ratings:

Dynamic C: 6.37 kN

Static C₀: 3.6 kN

Fatigue load rating P_U: 0.156 kN

Limiting speed: 13000 rpm

Seal: Contact seal, NBR, on both sides

Weight: 0.05 kg
