Manufacturer: SKF

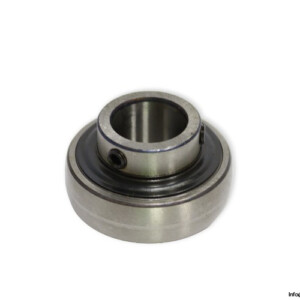

Type: Insert bearing with set screw locking and extended inner ring

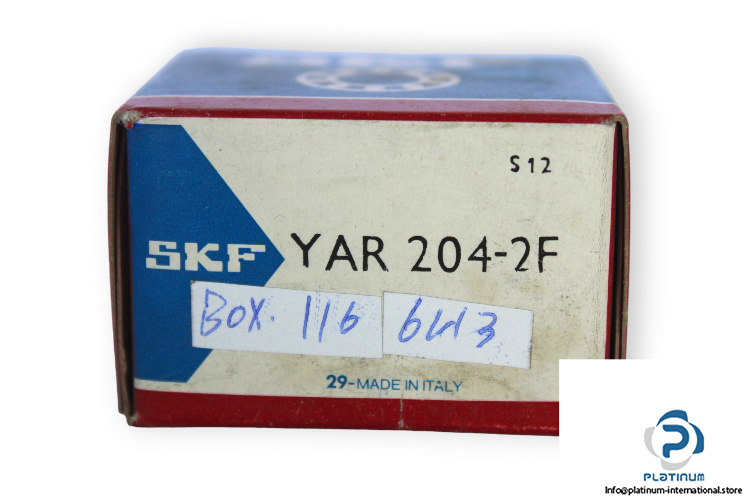

Model: YAR204-2F

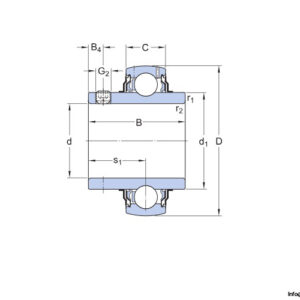

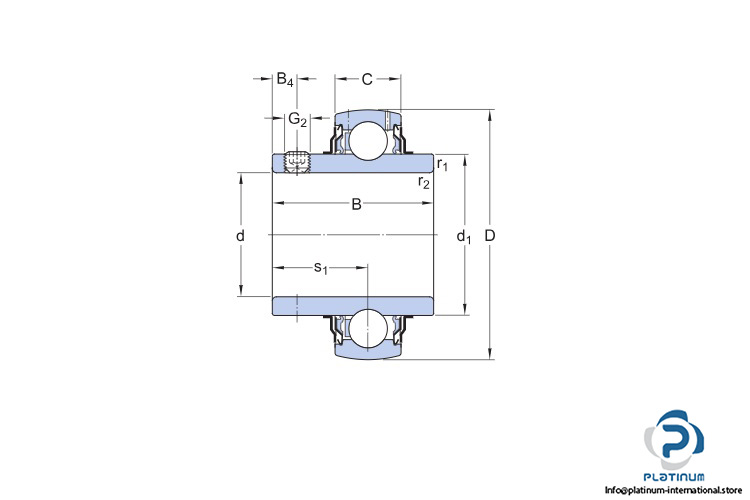

Bore Diameter d: 20 mm
Outer diameter D: 47 mm
Width of inner ring B: 31 mm
Width of outer ring C: 14 mm
Basic load ratings:
Dynamic C: 12700 N
Static C₀: 6550 N
Fatigue load rating: 280 N
Limiting speed: 8500 rpm
Inner ring extension: on both sides
Outer ring type: Spherical
Retaining feature, inner ring: Set screws
Sealing: Seal and flinger on both sides
Bore type: Cylindrical
