Manufacturer: SKF

Type: Insert bearing with set screw locking and extended inner ring

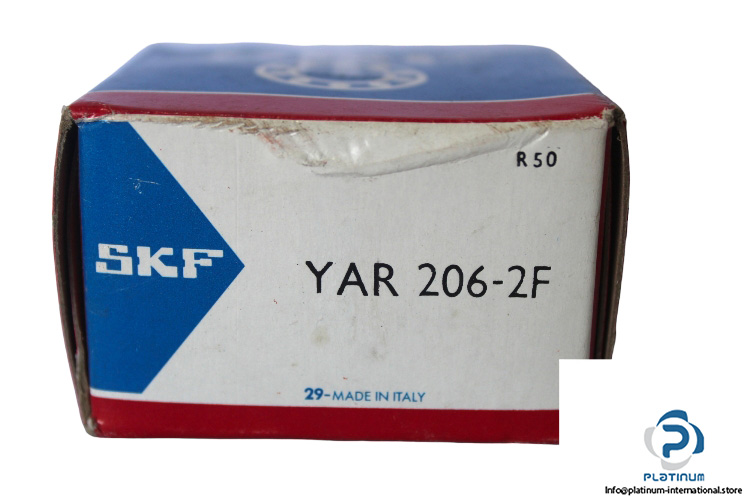

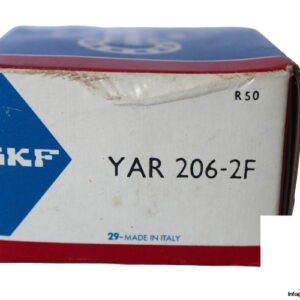

Model: YAR206-2F

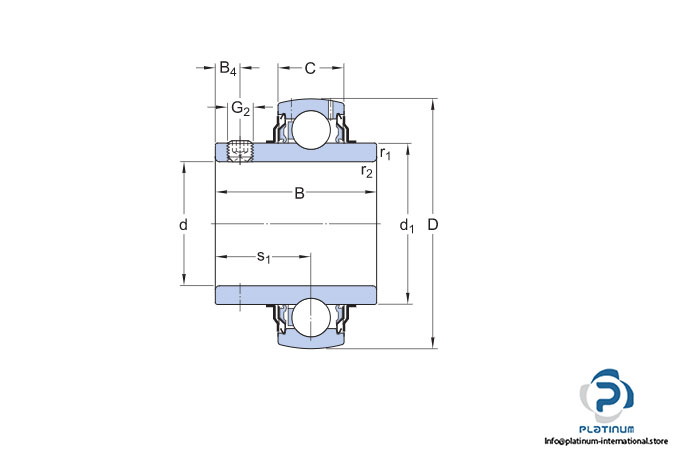

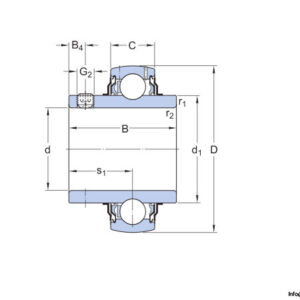

Bore Diameter d: 30 mm

Outer diameter D: 62 mm

Width of inner ring B: 38.1 mm

Width of outer ring C: 18 mm

Basic load ratings:

Dynamic C: 19500 N

Static C₀: 11200 N

Fatigue load rating: 475 N

Limiting speed: 6300 rpm

Inner ring extension: on both sides

Outer ring type: Spherical

Retaining feature, inner ring: Set screws

Sealing: Seal and flinger on both sides

Bore type: Cylindrical
