Manufacturer: SKF

Type: Insert bearing with set screw locking and extended inner ring

Model: YAR210-2F

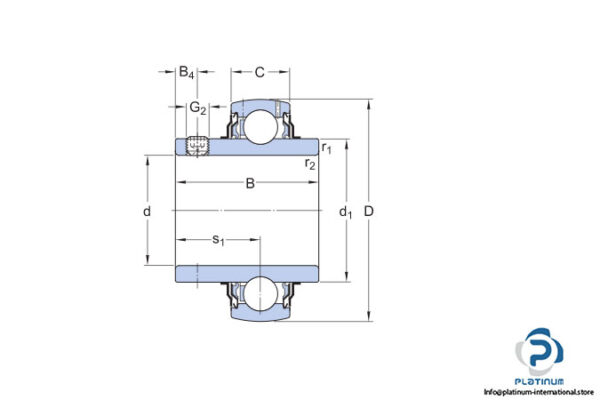

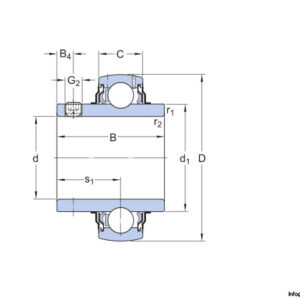

Bore Diameter d: 50 mm

Outer diameter D: 90 mm

Width of inner ring B: 51.6 mm

Width of outer ring C: 22 mm

Basic load ratings:

Dynamic C: 35100 N

Static C₀: 23200 N

Fatigue load rating: 980 N

Limiting speed: 4000 rpm

Inner ring extension: on both sides

Outer ring type: Spherical

Retaining feature, inner ring: Set screws

Sealing: Seal and flinger on both sides

Bore type: Cylindrical
