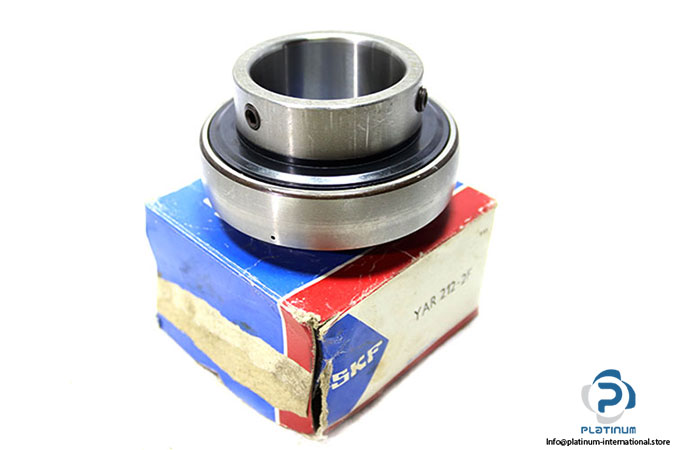

SKF YAR 212-2F INSERT BALL BEARING
SKF™s YAR 212-2F insert ball bearing is designed for reliable performance in high-load and high-speed applications. It features robust sealing, double-side inner ring extension, and set screws for secure mounting, making it ideal for use in demanding industrial environments.
Manufacturer: SKF
Type: Insert Ball Bearing
Model: YAR 212-2F
Technical Information
- Bore Diameter (d): 60 mm
- Outer Diameter (D): 110 mm
- Width of Inner Ring (B): 65.1 mm
- Width of Outer Ring (C): 26 mm
- Basic Load Ratings “ Dynamic (C): 52.7 kN
- Basic Load Ratings “ Static (C0): 36 kN
- Fatigue Load Rating: 1.53 kN
- Limiting Speed: 3400 rpm
- Inner Ring Extension: On Both Sides
- Outer Ring Type: Spherical
- Retaining Feature, Inner Ring: Set Screws
- Sealing: Seal and Flinger on Both Sides
- Bore Type: Cylindrical
