Manufacturer: SKF
Type: Insert bearing with set screw locking and extended inner ring
Model: YAR213-2F

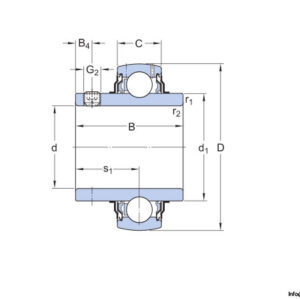

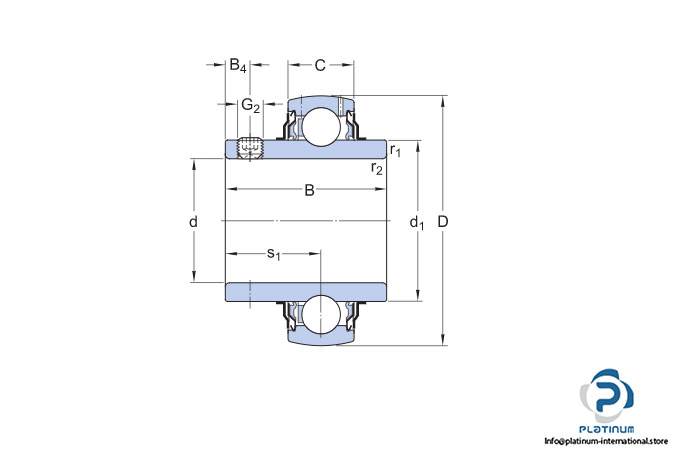

Bore Diameter d: 65 mm
Outer diameter D: 120 mm
Width of inner ring B: 68.3 mm
Width of outer ring C: 27 mm
Basic load ratings:
Dynamic C: 57200 N
Static C0: 40000 N
Fatigue load rating: 1700 N
Limiting speed: 3000 rpm
Inner ring extension: on both sides
Outer ring type: Spherical
Retaining feature, inner ring: Set screws
Sealing: Seal and flinger on both sides
Bore type: Cylindrical
