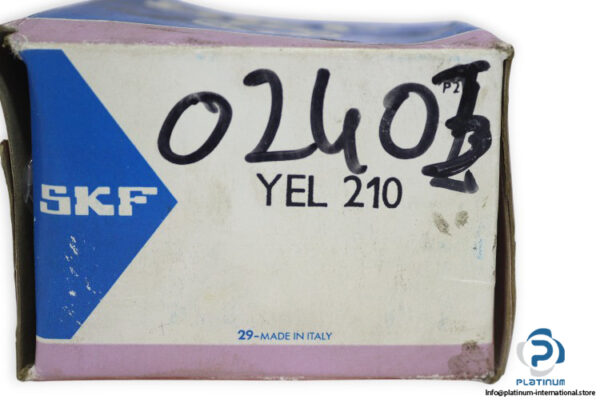

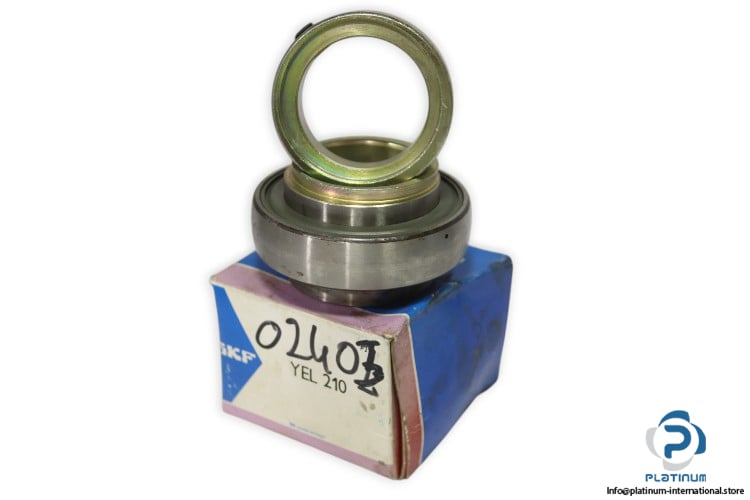

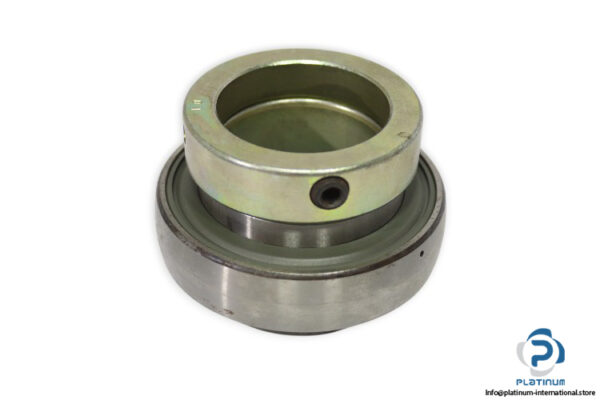

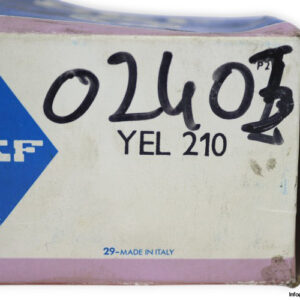

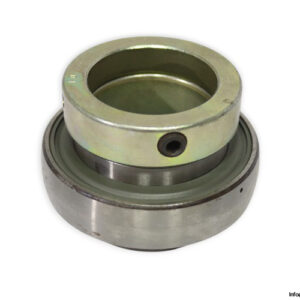

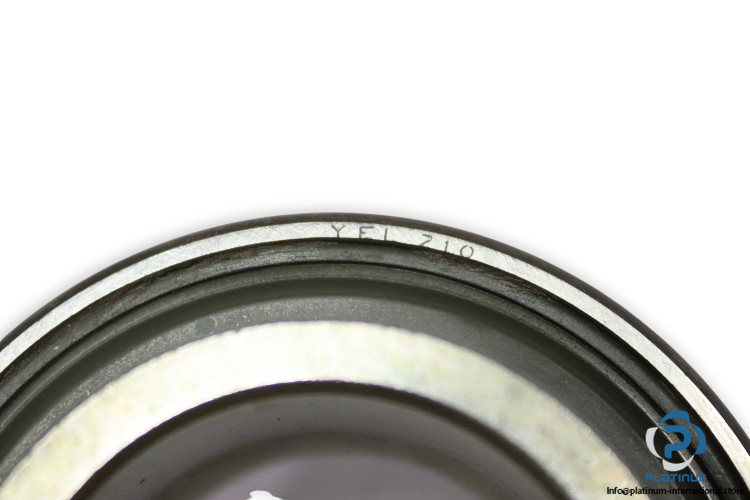

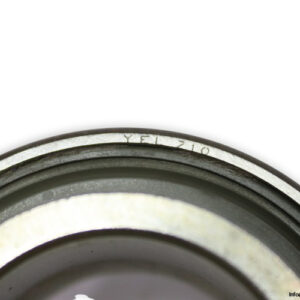

SKF YEL210 Insert Bearing

The SKF YEL210 is a high-quality insert bearing designed to deliver smooth performance and extended service life in demanding industrial applications. It features a 50 mm bore diameter and provides excellent load-carrying capacity, reliability, and easy installation in bearing housings or units. Built with precision engineering, the YEL210 ensures efficient operation under dynamic and static loads with a maximum speed of 4000 r/min.

• Manufacturer: SKF
• Type: Insert Bearing
• Model: YEL210

Technical Information

• Shaft Diameter: 50 mm
• Bore Diameter (d): 50 mm
• Outer Diameter (D): 90 mm
• Width of Inner Ring (B): 49.2 mm
• Width of Outer Ring (C): 22 mm
• Overall Bearing Width (B1): 62.7 mm
• Basic Load Ratings:
• Dynamic (C): 35.1 kN
• Static (C0): 23.2 kN
• Limiting Speed: 4000 r/min
