Manufacturer: SKF
Type: Insert bearing with an eccentric locking collar and narrow inner ring

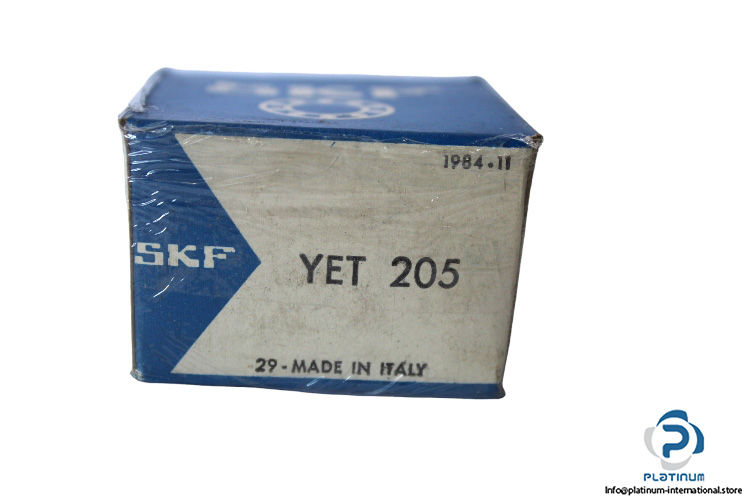

Model: YET205

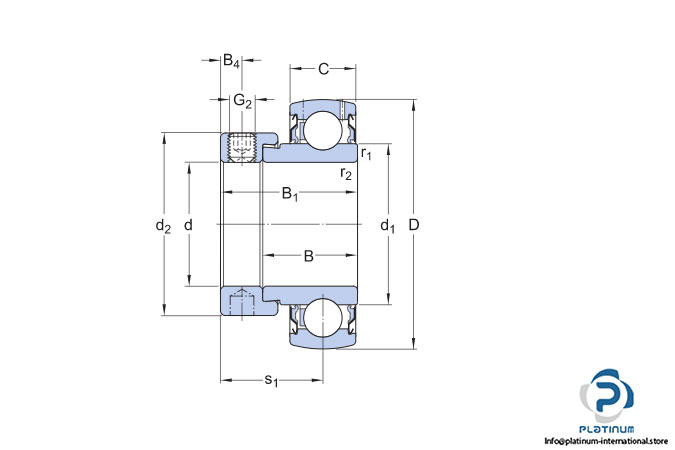

Bore Diameter d: 25 mm
Outer diameter D: 52 mm
Width of inner ring B: 21.5 mm
Width of outer ring C: 15 mm
Overall bearing width B1: 31 mm
Basic load ratings:
Dynamic C: 14000 N
Static C₀: 7800 N
Fatigue load rating: 335 N
Limiting speed: 7000 rpm
Inner ring extension: On one side
Outer ring type: Spherical
Retaining feature, inner ring: Eccentric collar
Sealing: Seal on both sides
Bore type: Cylindrical
