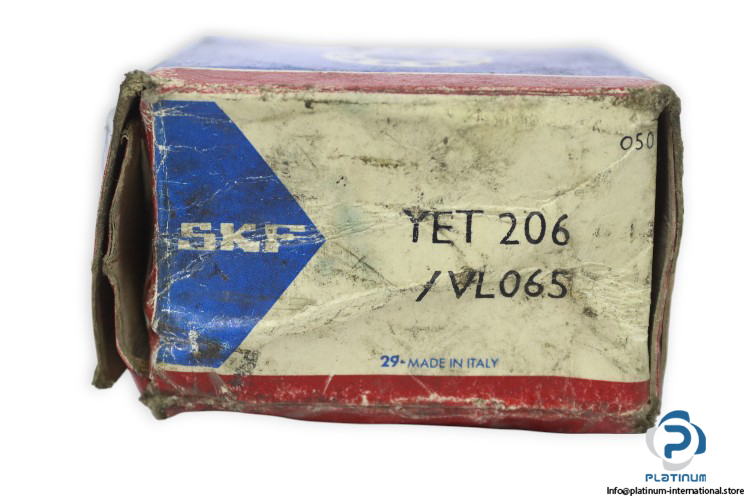

SKF YET 206/VL065 INSERT BALL BEARING
The SKF YET 206/VL065 Insert Ball Bearing is a precision-engineered component designed for reliable operation and long service life. Featuring a zinc-coated inner ring bore and side faces, it provides excellent corrosion resistance and durability for industrial applications.
Manufacturer: SKF
Type: Insert Ball Bearing
Model: YET 206/VL065
Technical Information
- Bore Diameter d: 30 mm
- Outer Diameter D: 62 mm
- Width of Inner Ring B: 23.8 mm
- Width of Outer Ring C: 18 mm
- Overall Bearing Width B1: 35.7 mm
- Dynamic Load Rating C: 19.5 kN
- Static Load Rating C0: 11.2 kN
- Fatigue Load Rating: 0.475 kN
- Limiting Speed: 6300 rpm
- Design: VL065, Zinc-coated inner ring bore and side faces
