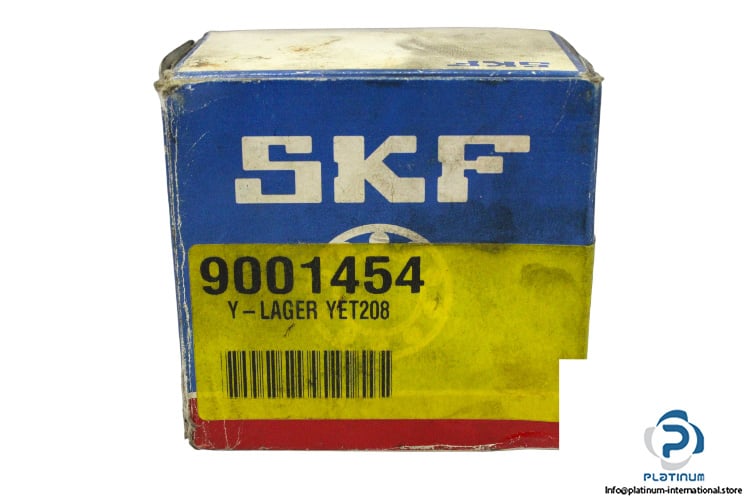

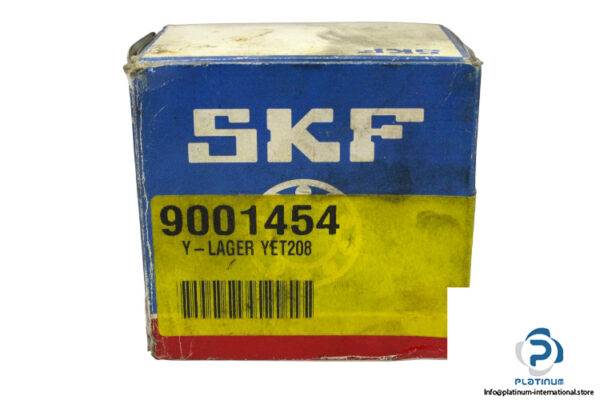

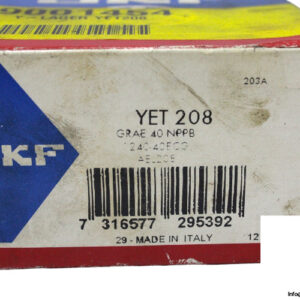

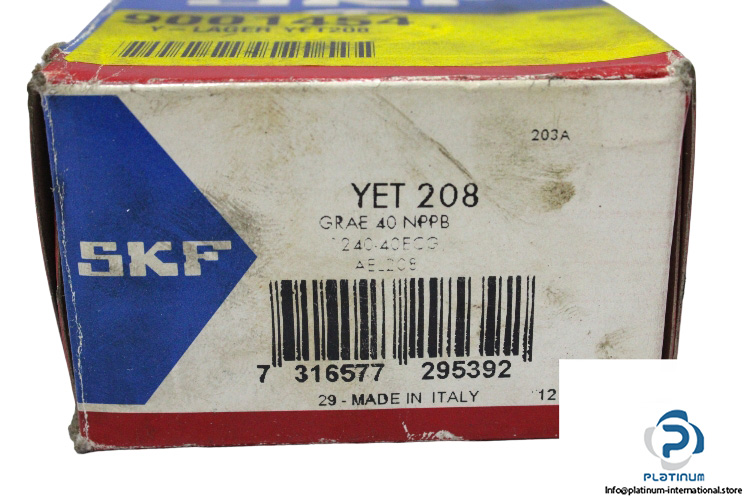

SKF YET 208 INSERT BALL BEARING
The SKF YET 208 Insert Ball Bearing is a robust and reliable bearing solution, designed for demanding applications requiring durability, high load capacity, and consistent performance. With an eccentric collar locking mechanism and dual-sided sealing, it offers secure mounting and protection against contaminants.
Manufacturer: SKF
Type: Insert Ball Bearing
Model: YET 208

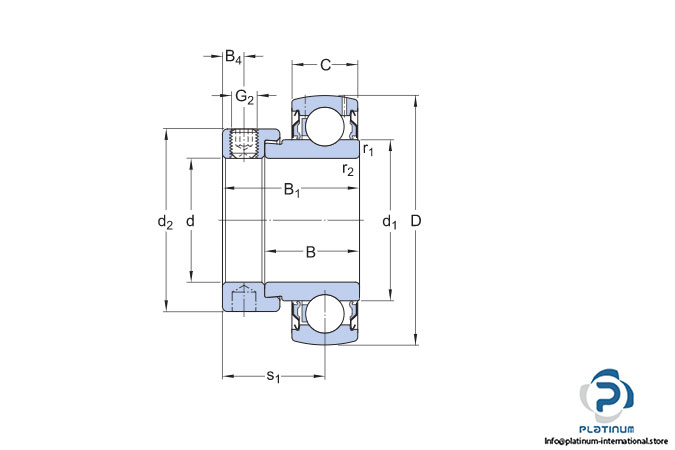

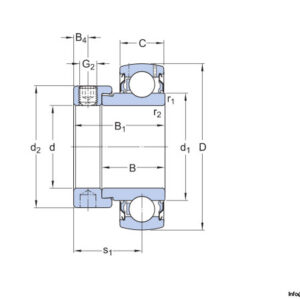

Technical Information
- Bore Diameter (d): 40 mm
- Outer Diameter (D): 80 mm
- Width of Inner Ring (B): 29.7 mm
- Width of Outer Ring (C): 21 mm
- Overall Bearing Width (B1): 43.2 mm
- Basic Load Ratings: Dynamic C: 30,700 N / Static C0: 19,000 N
- Fatigue Load Rating: 800 N
- Limiting Speed: 4800 rpm
- Inner Ring Extension: On one side
- Outer Ring Type: Spherical
- Retaining Feature, Inner Ring: Eccentric collar
- Sealing: Seal on both sides
- Bore Type: Cylindrical
