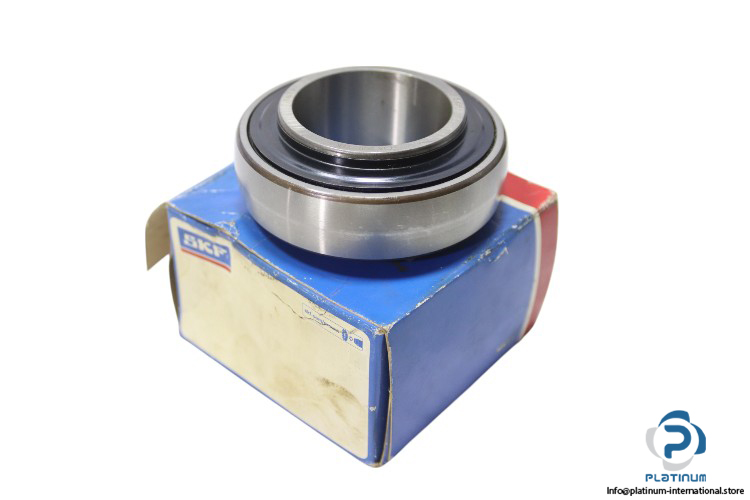

SKF YSA 209-2FK INSERT BALL BEARING
This SKF insert ball bearing offers high performance for demanding industrial applications. Engineered with a tapered bore, symmetric inner ring extension, and double sealing system, it provides reliable alignment and smooth operation even under high dynamic and static loads.
Manufacturer: SKF
Type: Insert Ball Bearing
Model: YSA 209-2FK
Technical Information
- Shaft Diameter: 40 mm
- Bore Diameter: 45 mm
- Outside Diameter: 85 mm
- Width of Inner Ring (B): 35 mm
- Width of Outer Ring (C): 22 mm
- Basic Dynamic Load Rating (C): 33.2 kN
- Basic Static Load Rating (C‚): 21.6 kN
- Fatigue Load Rating: 0.915 kN
- Limiting Speed: 4300 r/min
- Inner Ring Extension: Symmetrically on Both Sides
- Outer Ring Type: Spherical
- Retaining Feature (Inner Ring): Adapter Sleeve
- Sealing: Seal and Flinger on Both Sides
- Bore Type: Tapered
