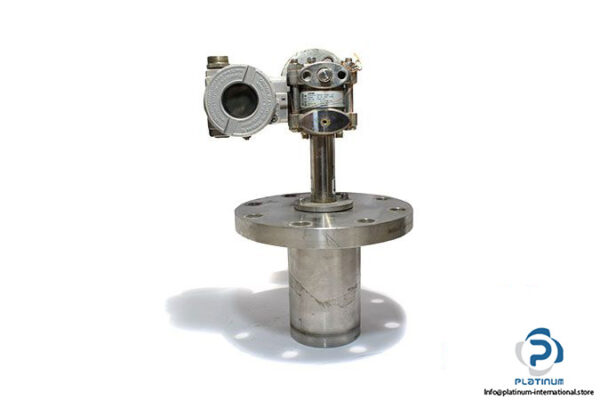

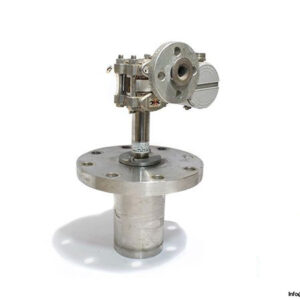

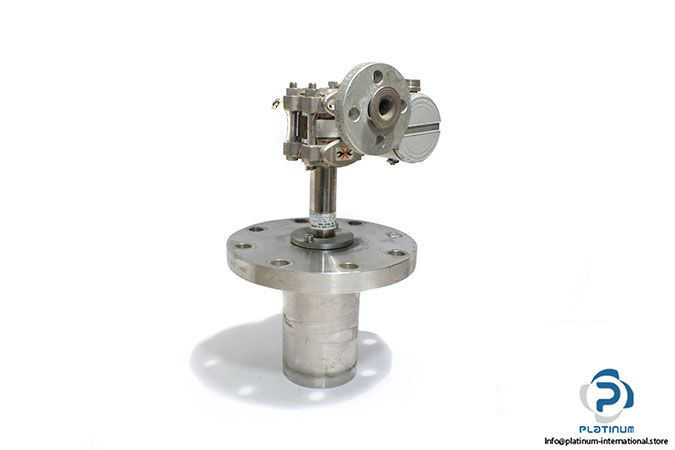

Manufacturer: SMAR

Type: Pressure Transmitter ‎Flange Connection

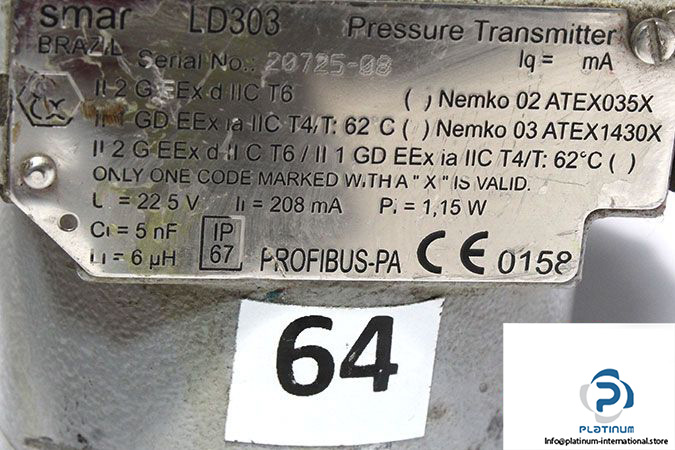

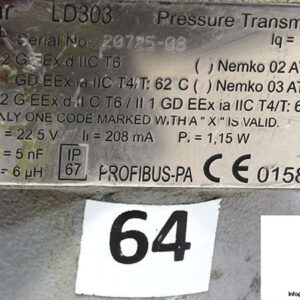

Model: LD303

Programming Technology: PROFIBUS PA; can be configured using Simatic PDM and by the FDT (Field Device Tool) and DTM (Device Type Manager) concept tools, such as Fieldcare and Pactware. It can also be integrated by any PROFIBUS System using the GSD file.

Fluid: Liquid, gas or steam

Output and Communication Protocol: Two-wire, 4-20 mA according to NAMUR NE43 specification, with superimposed digital communication (HART® Protocol). FoundationTM fieldbus and PROFIBUS PA: Digital only. Complies with IEC 61158-2:2000 (H1): 31.25 kbit/s voltage mode, bus powered.

Power Supply / Current Consumption: HART®: 12 to 45 V DC

Indicator: 4½-digit numerical and 5-character alphanumerical LCD indicator (optional).

Volumetric Displacement: Less than 0.15 cm3 (0.01 in3 )

Diaphragm Materia: 316L SST

Fill Fluid: Silicon

Weight: 14.5 kg
