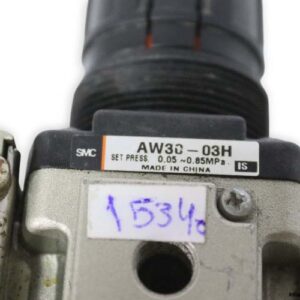

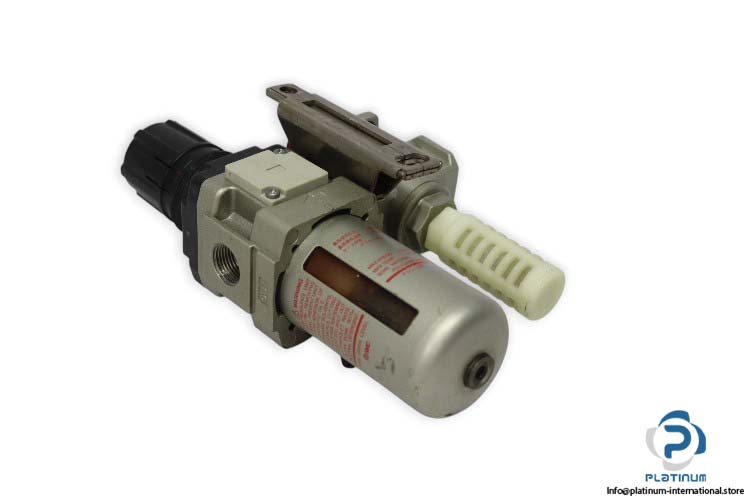

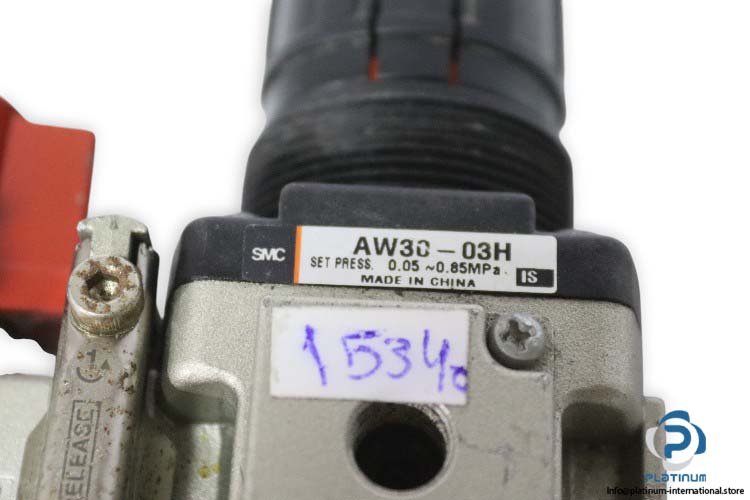

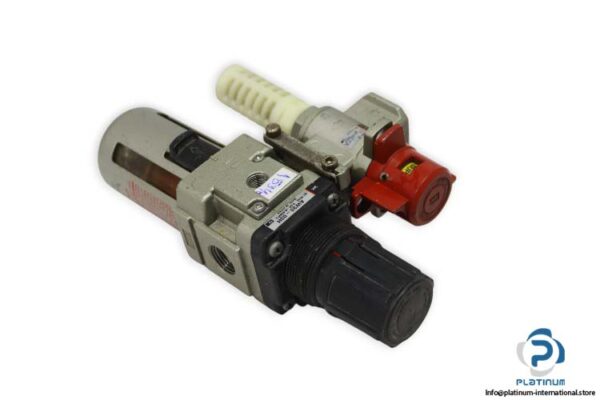

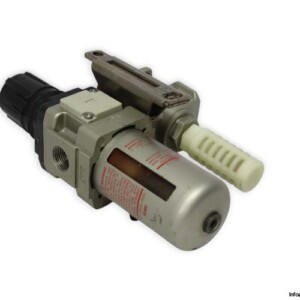

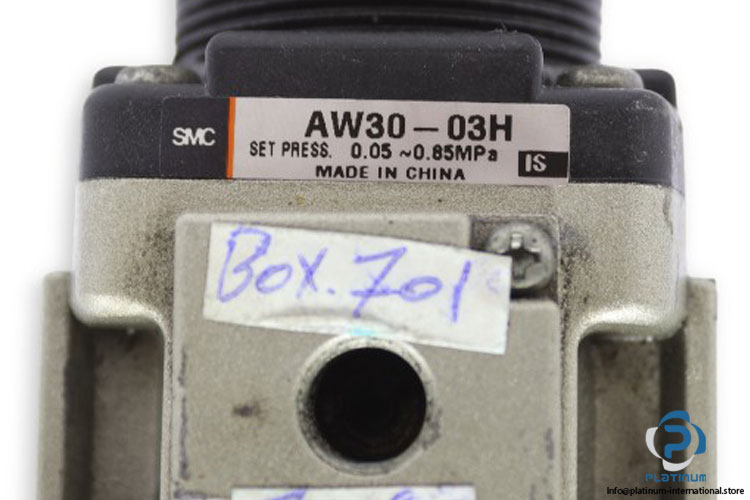

SMC AW30-03H FILTER REGULATOR WITH PRESSURE RELIEF VALVE
The SMC AW30-03H is a compact and efficient air filter regulator designed to provide precise pressure control and reliable filtration in pneumatic systems. Ideal for panel mounting, this unit comes with a SMC VHS30-03 pressure relief 3-port valve for added safety and operational flexibility.
Manufacturer: SMC
Type: Filter Regulator
Model: AW30-03H
Technical Information
- Size: 30
- Connections: 3/8 & 1/8 inch
- Fluid: Air
- Bowl Material: Polycarbonate
- Proof Pressure: 1.5 MPa
- Maximum Operating Pressure: 1.0 MPa
- Set Pressure Range: 0.05 to 0.85 MPa
- Temperature Range: -5 to 60°C
- Mounting: H, With Set Nut (for Panel Fitting)

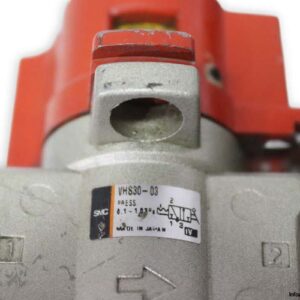

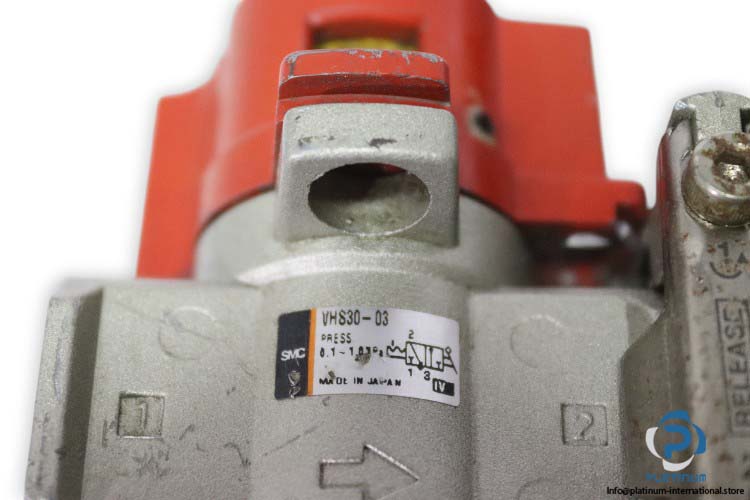

Attachment “ SMC VHS30-03 Pressure Relief 3 Port Valve
- Size: 30
- Port Size: 3/8 inch
- Pressure Range: 0.1 to 1.01 MPa
- Handle Switching Angle: 90°
- Proof Pressure: 1.5 MPa
- Max. Operating Pressure: 1.0 MPa
