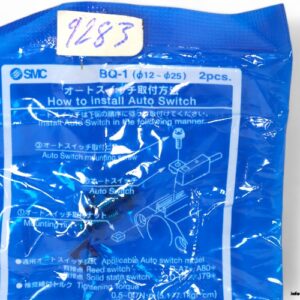

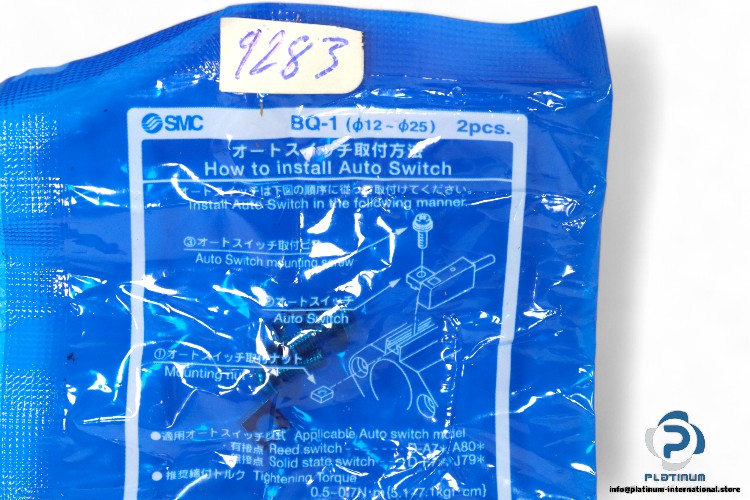

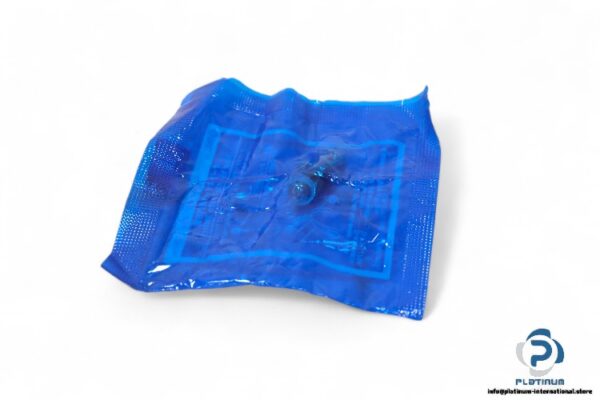

SMC Auto-Switch Bracket – Model BQ-1

The SMC BQ-1 Auto-Switch Bracket is a versatile and reliable solution for mounting auto-switches on cylinders with bore sizes ranging from 12 to 25 mm. Engineered for ease of installation and durability, this bracket ensures secure attachment of compatible auto-switches in a variety of industrial applications.

The bracket includes an auto-switch mounting screw (M3 x 0.5 x 8L) and a hexagon nut (M3 x 0.5) for convenient and precise assembly. Compatible auto-switches include models D-A7, D-A8, D-F7, and D-J7, providing flexibility for various setups. The recommended torque tightening range is 0.5 to 0.7 Nm, ensuring optimal performance without over-tightening.

The SMC BQ-1 Auto-Switch Bracket is a dependable accessory, designed to complement SMC’s high-quality pneumatic cylinders and auto-switches, contributing to efficient and precise automation processes.
