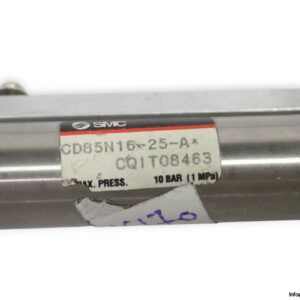

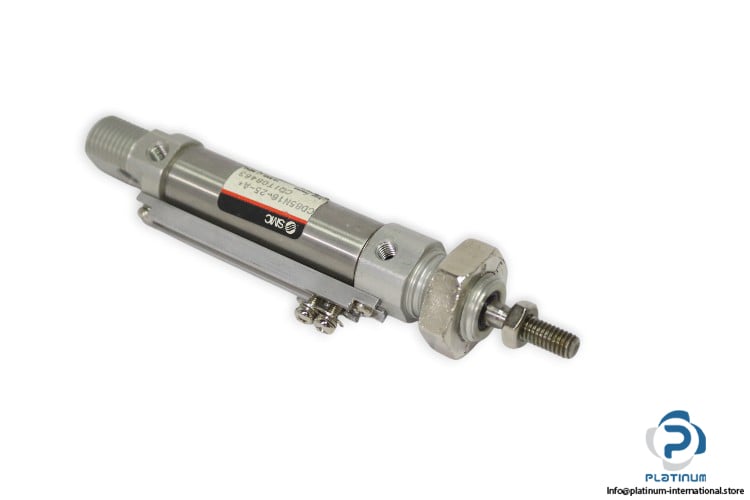

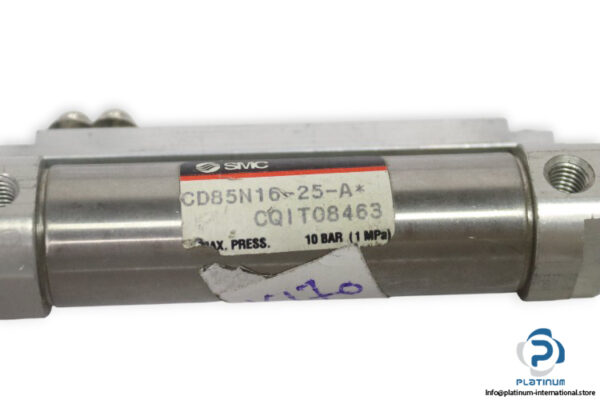

SMC CD85N16-25-A ISO Cylinder

The SMC CD85N16-25-A ISO Cylinder is a compact pneumatic actuator designed for reliable linear motion in industrial automation systems. Featuring a built-in magnet and double-acting operation, it ensures accurate positioning and smooth performance.

Manufacturer: SMC
Type: ISO Cylinder
Model: CD85N16-25-A
Ref No.: CQIT08463

Technical Information

Built-in Magnet: Yes
Series: C85
Fluid: Air
Stroke: 25 mm
Bore Size: 16 mm
Max. Pressure: 1 MPa
Mode of Operation: Double Acting
Port Size: 5 mm
Piston Speed: 50 to 1500 mm/s
Ambient Temperature: -20 / 80 °C
