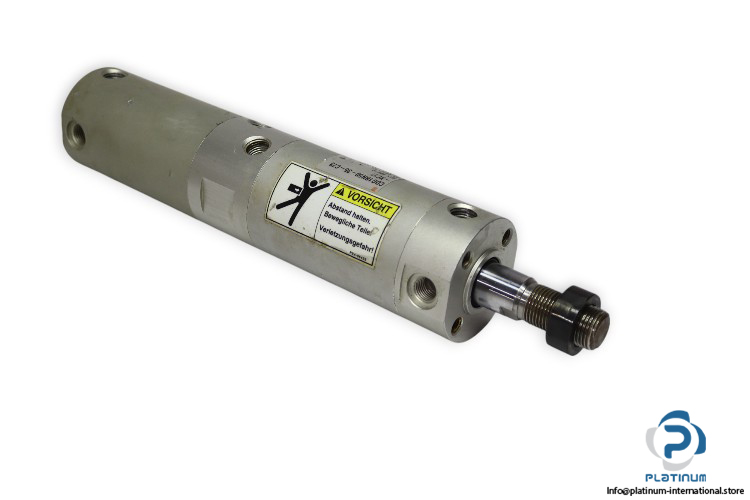

SMC CDG1BN5035C73-XC12 AIR CYLINDER WITH AUTO SWITCH

The CDG1BN5035C73-XC12 from SMC is a high-performance air cylinder from the CG1 series, engineered for efficient pneumatic actuation with reliable positioning thanks to its integrated auto switch.

Manufacturer: SMC
Type: Air Cylinder With Auto Switch

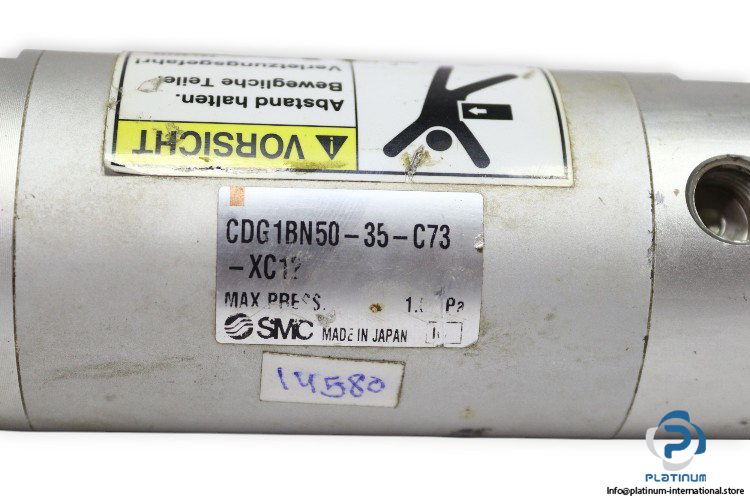

Model: CDG1BN5035C73-XC12
Series: CG1

Technical Information

• Bore Diameter: 50 mm
• Stroke: 35 mm
• Port Size: G1/4
• Cushion: Rubber Bumper
• Fluid: Air
• Operation Mode: Double Acting
• Max. Operating Pressure: 1 MPa
• Piston Rod End: Male
• Shape: Circular
• Rod Direction: One Side
• Ambient and Fluid Temperature: -10 to +60°C
